PLAN 569-13

Photographs may show modified designs.

Save
  • Jump to:
  • All (4)
  • Floor plans (2)
Questions? Get Personalized Help
Home  >  Style  >  Contemporary

Key Specs


Plan Sq Ft

2405
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

3
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Audio Video Design
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$860.00
Best Price Guaranteed*

Also order by phone: 1-800-447-0027

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 569-13

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

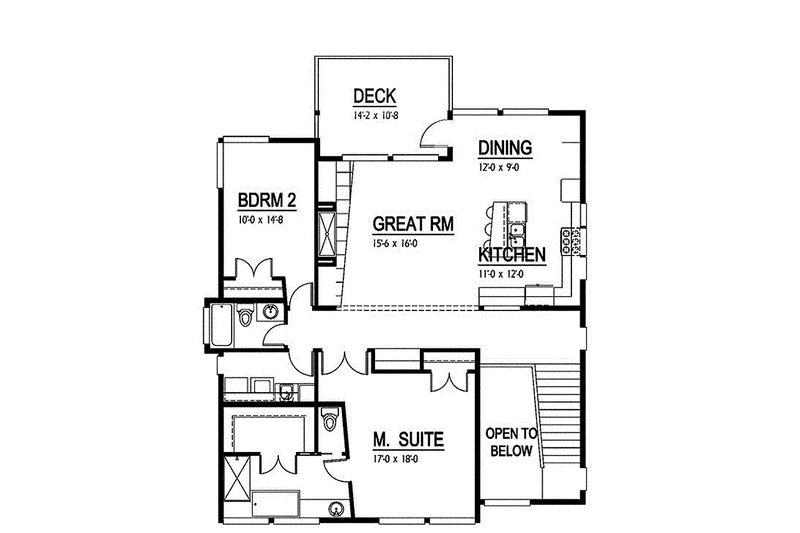

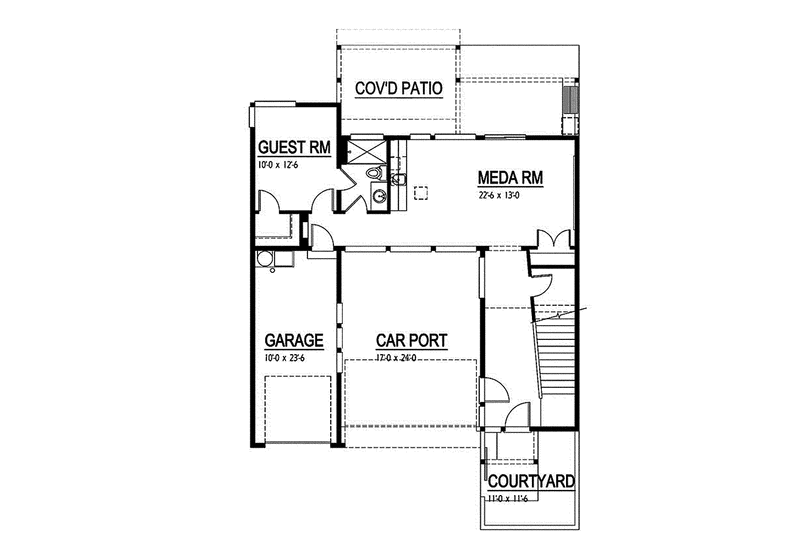

This impressive three-bedroom home features an open floor plan with plenty of entertaining opportunities. The great room, dining room and kitchen share a huge space on the second level. A gas fireplace, kitchen island with snack bar, and access to the outdoor deck make this a perfect party spot. The master suite and a second bedroom complete this level, while the main level houses a media room and guest suite.

Full Specs & Features


Dimension

Depth : 51'

Height : 26' 8"

Width : 40'

Area

First Floor: 868 sq/ft height 9'

Garage: 264 sq/ft

Second Floor: 1537 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12

Roof Framing : Conventional

Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Guest Suite

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Media Room

Upstairs Laundry

Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard

Deck

Rooms

Bedroom 2:

146 sq/ft width 10' x depth 14' 8"

Carport:

408 sq/ft width 17' x depth 24'

Courtyard:

126 sq/ft width 11' x depth 11' 6"

Deck:

151 sq/ft width 14' 2" x depth 10' 8"

Dining Room:

108 sq/ft width 12' x depth 9'

Garage:

235 sq/ft width 10' x depth 23' 6"

Great Room:

248 sq/ft width 15' 6" x depth 16'

Guest Bedroom:

125 sq/ft width 10' x depth 12' 6"

Kitchen:

132 sq/ft width 11' x depth 12'

Master Suite:

306 sq/ft width 17' x depth 18'

Media Room:

292 sq/ft width 22' 6" x depth 13'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
