PLAN #120-113

Key Specs


2485
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

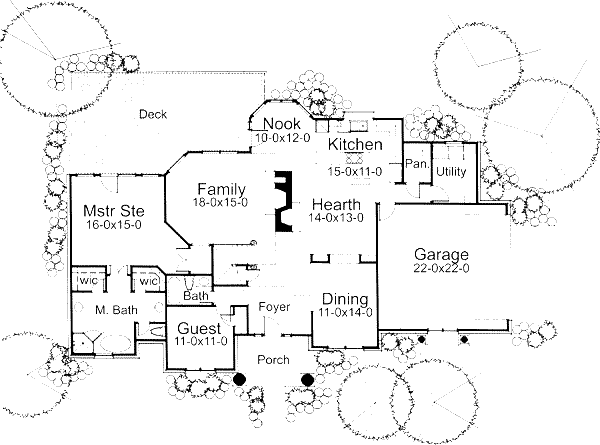

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #120-113

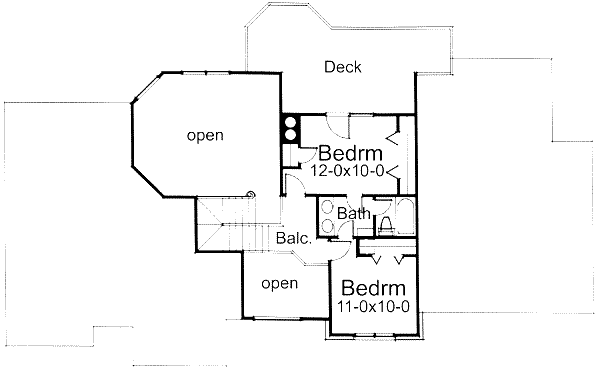

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #120-113

Full Specs & Features


Dimension
Depth : 49' 3"
Height : 32'
Width : 74' 8"
Area
First Floor: 2062 sq/ft
Second Floor: 423 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : 2"x4"
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Loft
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Balcony
More
Jack & Jill Bath
Rooms

3rd BR Closet:

14 sq/ft width 7' 3" x depth 2'

Basement Foundation:

3677 sq/ft width 74' 8" x depth 49' 3"

Bathroom 2:

37 sq/ft width 7' 7" x depth 5'

Bathroom 3:

60 sq/ft width 12' 2" x depth 5'

Bedroom 2:

120 sq/ft width 12' x depth 10'

Bedroom 2 Closet:

20 sq/ft width 2' x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Bedroom 3 Closet:

20 sq/ft width 2' x depth 10'

Breakfast Room:

120 sq/ft width 10' x depth 12'

Crawlspace Foundation:

3677 sq/ft width 74' 8" x depth 49' 3"

Deck:

590 sq/ft width 33' 5" x depth 17' 8"

Dining Room:

154 sq/ft width 11' x depth 14'

Foyer:

128 sq/ft width 10' 8" x depth 12'

Garage:

464 sq/ft width 21' 8" x depth 21' 5"

Gathering Room:

270 sq/ft width 18' x depth 15'

Kitchen:

165 sq/ft width 15' x depth 11'

Master Bedroom:

240 sq/ft width 16' x depth 15'

Master Closet:

22 sq/ft width 5' 7" x depth 4'

Porch - Front:

112 sq/ft width 13' x depth 8' 8"

Slab Foundation:

3677 sq/ft width 74' 8" x depth 49' 3"

Study:

121 sq/ft width 11' x depth 11'

Utility Room:

74 sq/ft width 7' 4" x depth 10' 2"

What's Included In This Plan Set


  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
» See important information before purchasing.

Plan Set

5 Copy Set :
$607.50
5 printed plan sets mailed to you.
8 Copy Set :
$697.50
8 printed plan sets mailed to you.
Reproducible Set :
$697.50
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1215.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set :
$607.50
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
135.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
