PLAN #72-813

Key Specs


2533
sq ft

3
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


The bell-shaped gambrel roof was a trademark of farmhouses in the 17th-Century Dutch colony of New Netherland. Front and rear covered porches encourage outdoor activities, while second-story dormers provide natural light for the bedrooms. With a large bay window, snack bar/work island, pantry and built-in desk, the country kitchen will be the center of family life. Three bedrooms, two baths and stairs leading to a third-floor exercise room and study/sewing room complete the plan. <P/><BR/>

Floor Plans

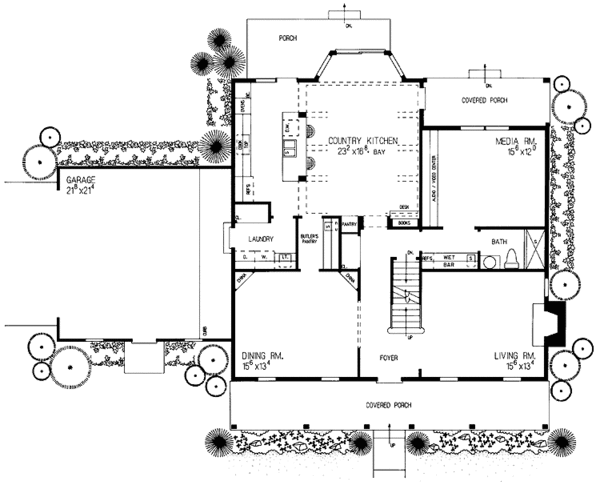

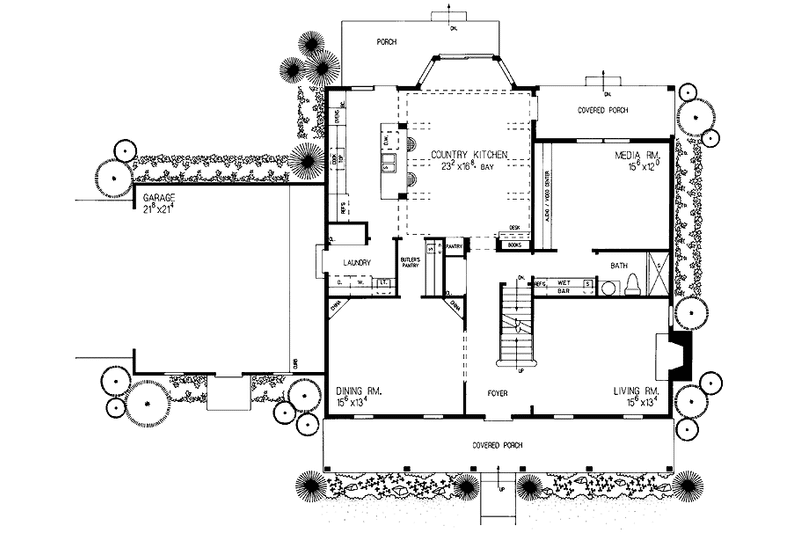

Floor Plan - Main Floor Plan
Colonial Floor Plan - Main Floor Plan Plan #72-813

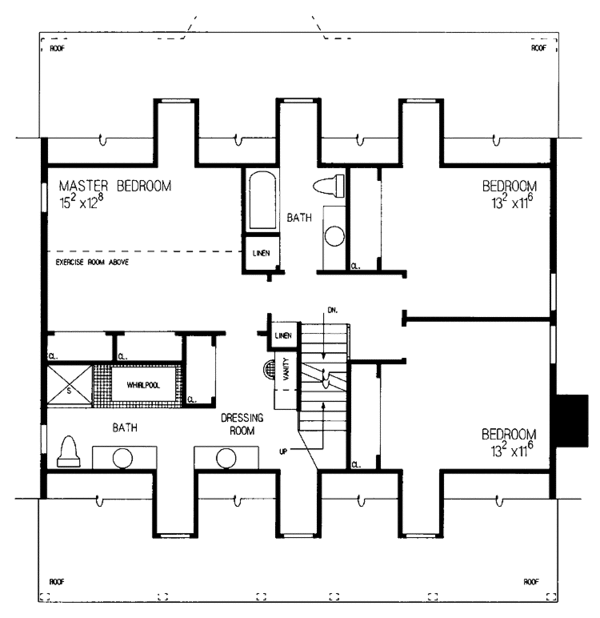

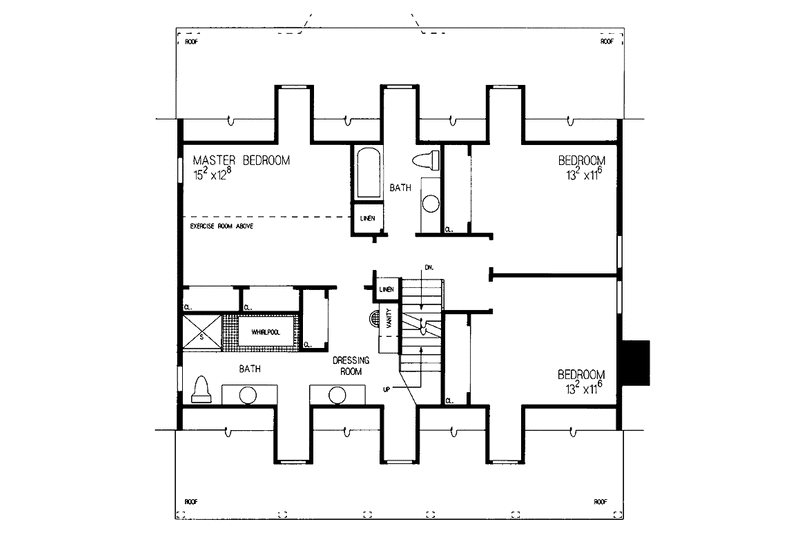

Floor Plan - Upper Floor Plan
Colonial Floor Plan - Upper Floor Plan Plan #72-813

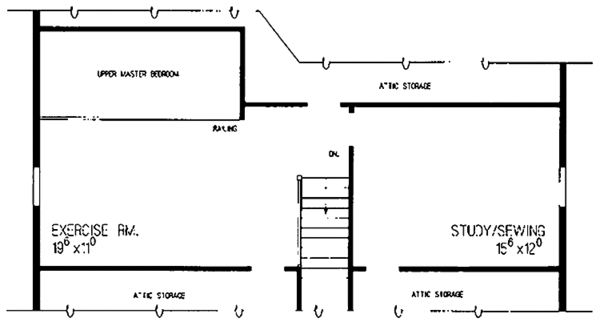

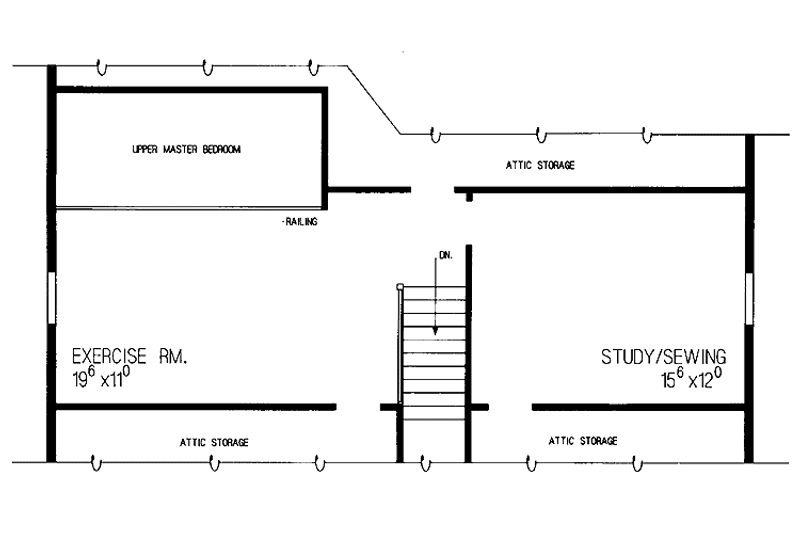

Floor Plan - Other Floor Plan
Colonial Floor Plan - Other Floor Plan Plan #72-813

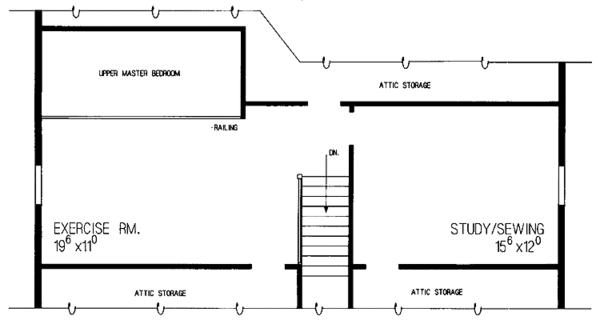

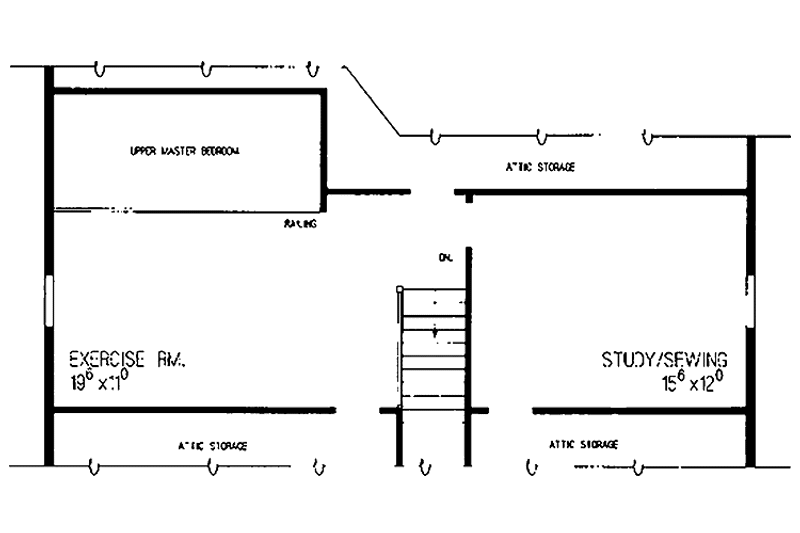

Floor Plan - Other Floor Plan
Colonial Floor Plan - Other Floor Plan Plan #72-813

Full Specs & Features


Dimension
Depth : 44'
Height : 30'
Width : 62'
Area
First Floor: 1453 sq/ft height 8'
Second Floor: 1080 sq/ft
Bedroom Features
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Media Room
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Loft Balcony
Rooms

Bathroom 2:

40 sq/ft width 5' x depth 8'

Hall Bathroom:

61 sq/ft width 8' x depth 7' 8"

Laundry Room:

42 sq/ft width 5' 7" x depth 7' 8"

Master Bathroom:

91 sq/ft width 8' x depth 11' 5"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$821.10
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$910.35
5 printed plan sets mailed to you.
8 Copy Set :
$999.60
8 printed plan sets mailed to you.
Reproducible Set :
$999.60
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1642.20
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$233.75
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$233.75
Ideal for sloping lot, lower level of home partially underground.
Slab:
$233.75
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Material List :
72.25
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
148.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
16.96
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
85.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
85.00
Receive an overlay sheet with suggested placement of audio and video components.
