PLAN 40-367

Home > Style > Mediterranean

Key Specs

2585
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This mediterranean design floor plan is 2585 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

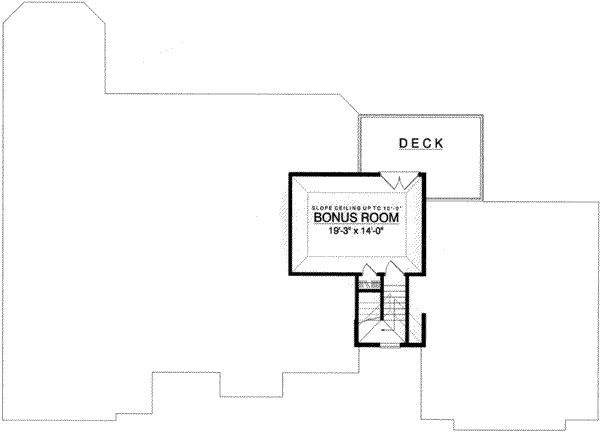

Floor Plan - Other Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

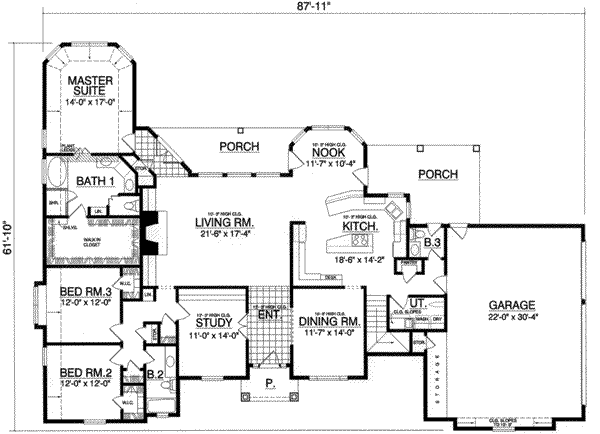

Floor Plan - Main Floor

Reverse

Full Specs & Features

Dimension

Depth : 61' 10"

Height : 28'

Width : 87' 11"

Area

Bonus: 316 sq/ft

First Floor: 2585 sq/ft height 8'

Garage: 783 sq/ft

Porch: 384 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stucco

Framing : 2"x4"

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Bonus Room - Unfinished:

269 sq/ft width 19' 3" x depth 14'

Dining Room:

162 sq/ft width 11' 7" x depth 14'

Entry:

83 sq/ft width 6' 9" x depth 12' 4"

Garage:

667 sq/ft width 22' x depth 30' 4"

Hall Bathroom:

52 sq/ft width 4' 11" x depth 10' 9"

Kitchen:

262 sq/ft width 18' 6" x depth 14' 2"

Living Room:

372 sq/ft width 21' 6" x depth 17' 4"

Master Bathroom:

136 sq/ft width 14' 5" x depth 9' 6"

Master Bedroom:

238 sq/ft width 14' x depth 17'

Master Closet:

112 sq/ft width 15' 2" x depth 7' 5"

Nook:

119 sq/ft width 11' 7" x depth 10' 4"

Porch - Front:

50 sq/ft width 9' 3" x depth 5' 6"

Powder Room:

26 sq/ft width 5' 9" x depth 4' 8"

Study:

154 sq/ft width 11' x depth 14'

Utility Room:

45 sq/ft width 8' 11" x depth 5' 1"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-447-0027

Plan Set

5 Copy Set:
$785.00

5 printed plan sets mailed to you.

8 Copy Set:
$875.00

8 printed plan sets mailed to you.

Reproducible Set:
$960.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$1535.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$685.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$100.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$50.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
