PLAN 72-1017

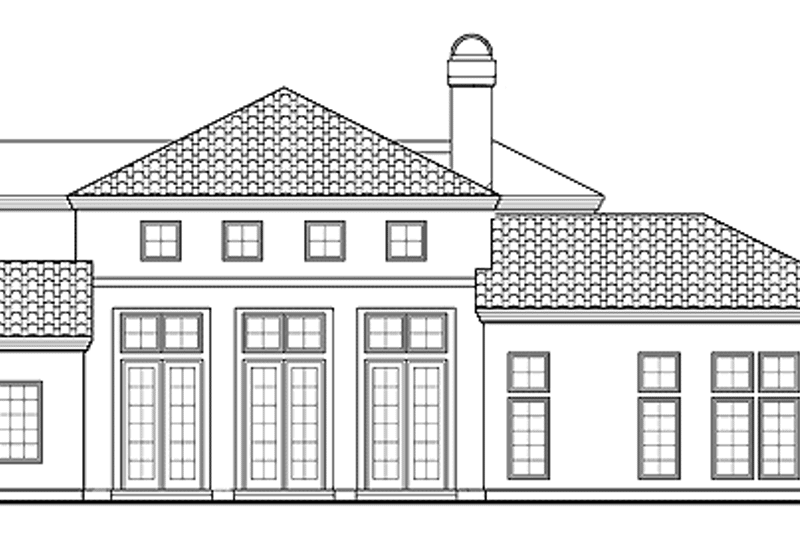

Dream House Plan - Mediterranean Exterior - Rear Elevation Plan #72-1017

Key Specs

2678
sq ft

5
Beds

4
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

	Right-Reading Reverse $157.50 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $54.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License $434.70 Additional Use License.
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Material List $76.50 A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets $54.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License $869.40 Unlimited Use License.

Subtotal

NOW $956.34

You save $106.26

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-800-447-0027

Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 72-1017

Key Specs

2678
sq ft

5
Beds

4
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This is it! The home you've been looking for a stately stucco one-story home with a soaring entrance. For added flexibility, the guest room located to the front of the plan can be used as a home office. A spacious great room features a wall of windows, a warming fireplace and built-in niches. The master suite is separated from the family bedrooms for privacy. The island kitchen easily works with both the bay-windowed dining room and the sunny breakfast area.

Floor Plans

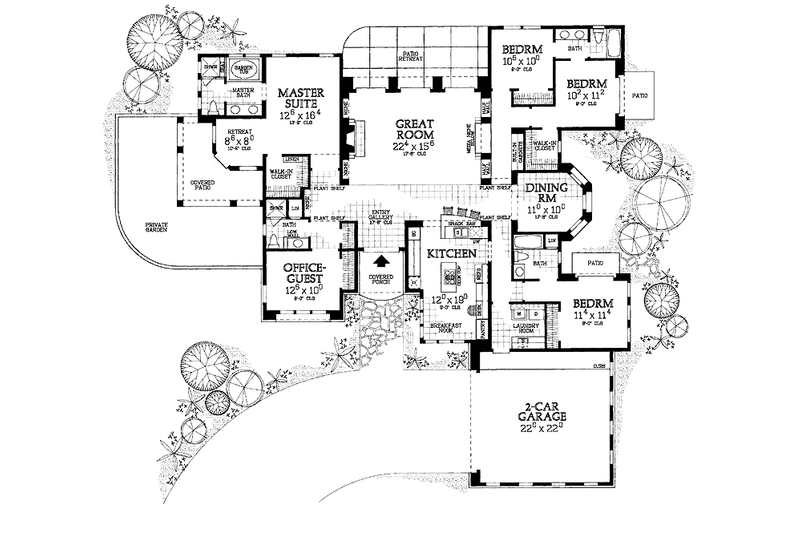

Floor Plan - Main Floor

Reverse

Dream House Plan - Mediterranean Floor Plan - Main Floor Plan #72-1017

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 77' 4"
Height : 24'
Width : 76' 6"

Area

First Floor: 2678 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard
Covered Front Porch

Rooms

3rd BR Closet:

39 sq/ft width 5' 6" x depth 7' 2"

Bathroom 2:

55 sq/ft width 11' x depth 5'

Bathroom 3:

56 sq/ft width 7' 6" x depth 7' 6"

Bedroom 2:

105 sq/ft width 10' 6" x depth 10'

Bedroom 2 Closet:

15 sq/ft width 2' 4" x depth 6' 6"

Bedroom 3:

113 sq/ft width 10' 2" x depth 11' 2"

Bedroom 3 Closet:

15 sq/ft width 2' 4" x depth 6' 6"

Bedroom 4:

128 sq/ft width 11' 4" x depth 11' 4"

Bedroom 4 Closet:

15 sq/ft width 2' x depth 7' 6"

Dining Room:

110 sq/ft width 11' x depth 10'

Foyer:

133 sq/ft width 22' 3" x depth 6'

Garage:

484 sq/ft width 22' x depth 22'

Gathering Room:

346 sq/ft width 22' 4" x depth 15' 6"

Hall:

35 sq/ft width 3' 6" x depth 10'

Hall Bathroom:

58 sq/ft width 7' x depth 8' 4"

Hall Closet:

9 sq/ft width 2' 2" x depth 4' 4"

Kitchen:

228 sq/ft width 12' x depth 19'

Laundry Room:

67 sq/ft width 9' x depth 7' 6"

Master Bathroom:

99 sq/ft width 10' 4" x depth 9' 8"

Master Bedroom:

204 sq/ft width 12' 6" x depth 16' 4"

Master Closet:

48 sq/ft width 7' 2" x depth 6' 10"

Porch - Front:

56 sq/ft width 7' 8" x depth 7' 4"

Study:

125 sq/ft width 12' 6" x depth 10'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.
