PLAN 1058-78

Mediterranean Exterior - Front Elevation Plan #1058-78

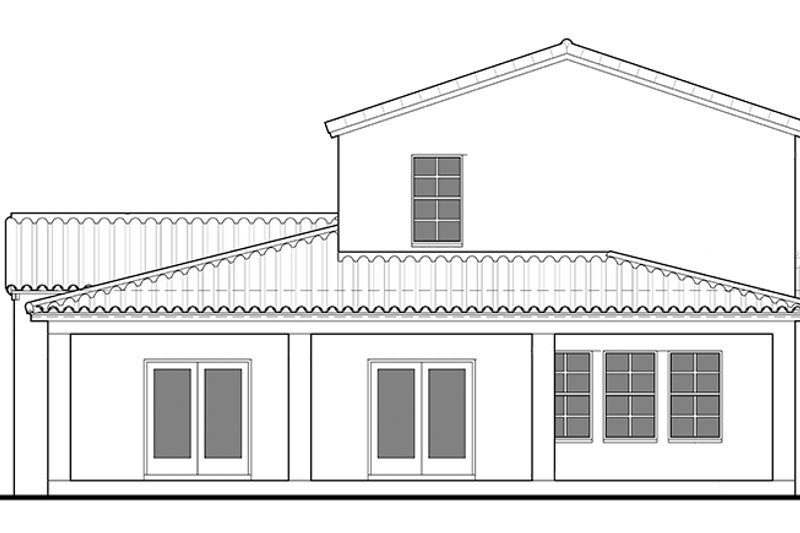

Mediterranean Exterior - Rear Elevation Plan #1058-78

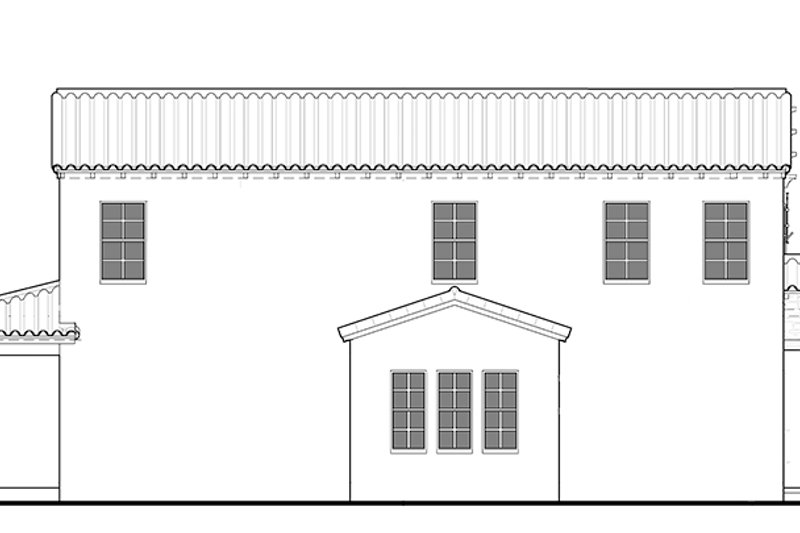

Mediterranean Exterior - Other Elevation Plan #1058-78

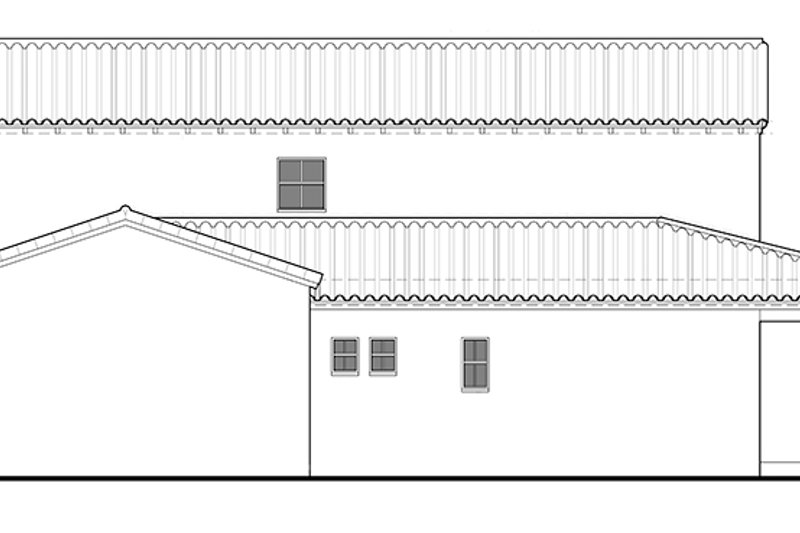

Mediterranean Exterior - Other Elevation Plan #1058-78

Key Specs

sq ft





Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
NOW $1795.50
You save $199.50
(10% savings)
Sale ends soon!
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1058-78

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

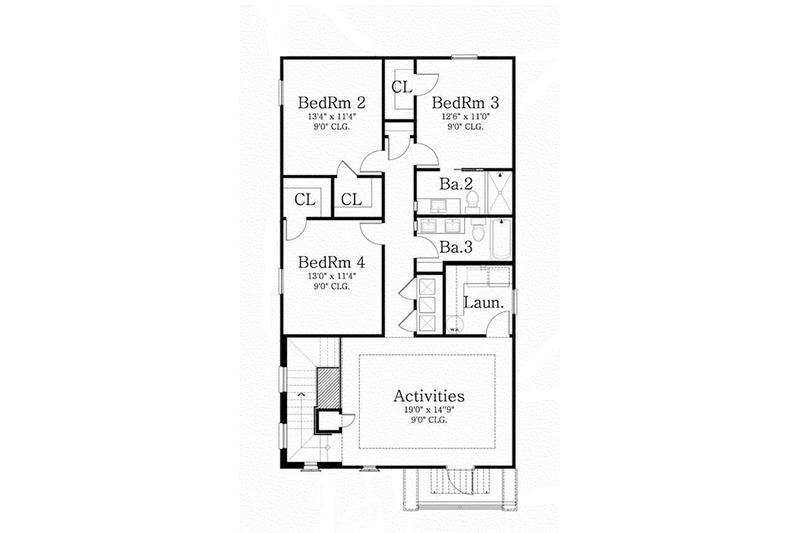

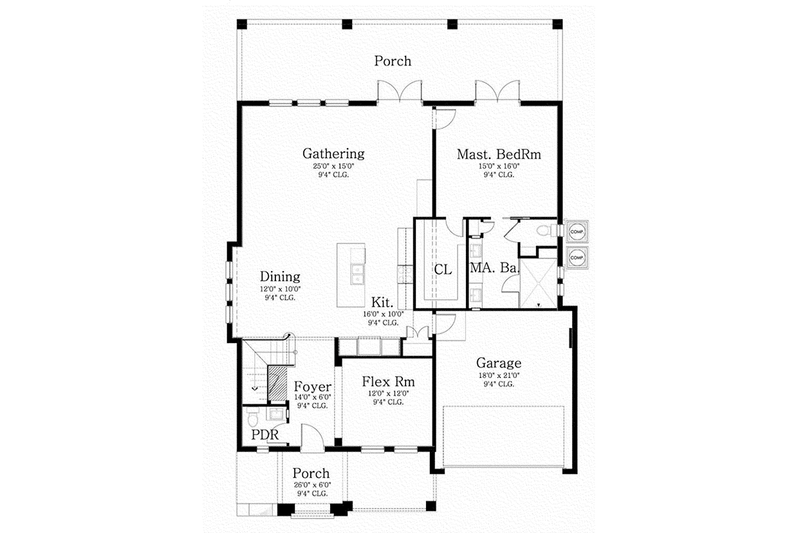

This attractive Mission-style plan has all the flexibility a growing family needs. The huge living space on the first level is complimented by a flex room that would make a great dining room (in addition to the casual meal space near the kitchen), a formal living room, or an open home office. The first-floor master suite affords time away from the kids and some space to pamper with a huge walk-in closet, a large shower, and two sinks. The bedroom also opens to the wide back porch. Upstairs, one of the three additional bedrooms includes a private bath, making it a great in-law or guest suite. Also on this level, a large activity room includes laundry facilities.

Full Specs & Features

Depth : 67'
Height : 25' 6"
Width : 47' 6"
First Floor: 1783 sq/ft height 9' 4"
Garage: 426 sq/ft height 9' 4"
Second Floor: 1204 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : Tile
Secondary Pitch : 3:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Block (1st Story)/ Wood – 2x4 (2nd Story)
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Open Floor Plan
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Activity Room:

280 sq/ft width 19' x depth 14' 9"

Bedroom 2:

151 sq/ft width 13' 4" x depth 11' 4"

Bedroom 3:

138 sq/ft width 12' 6" x depth 11'

Bedroom 4:

147 sq/ft width 13' x depth 11' 4"

Covered Front Porch:

224 sq/ft width 26' x depth 6'

Covered Rear Porch:

486 sq/ft

Dining Area:

120 sq/ft width 12' x depth 10'

Family Room:

375 sq/ft width 25' x depth 15'


84 sq/ft width 6' x depth 14'


426 sq/ft width 18' x depth 21'


160 sq/ft width 16' x depth 10'

Master Bedroom:

240 sq/ft width 15' x depth 16'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.


Wood 2x4:
Wood 2x4

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
