PLAN #569-26

Key Specs


3047
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

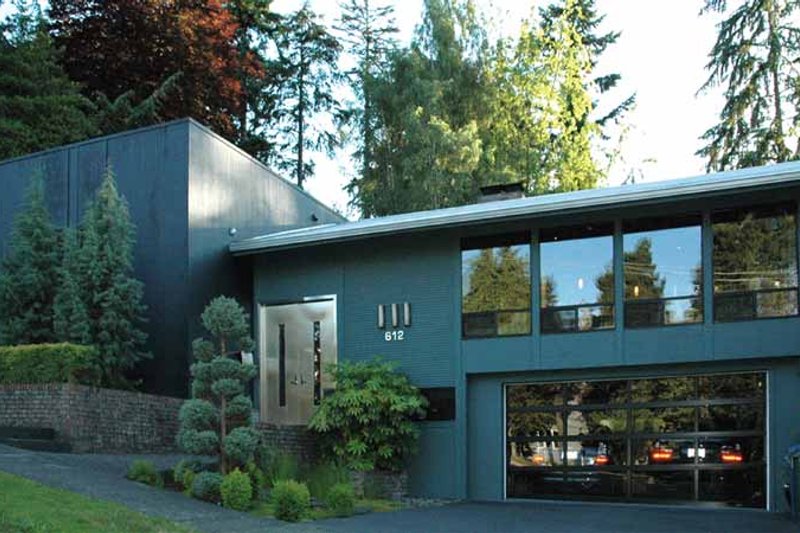

This contemporary home revisits the architectural styles made famous during the mid-century movement. The open floor plan boasts modern design elements that include a large great room, dining and kitchen area maximizing views off the front façade along with a master, office and jr. suite. The lower level includes a media room, guest room and a two car garage tucked under to accommodate a sloping lot.

Floor Plans

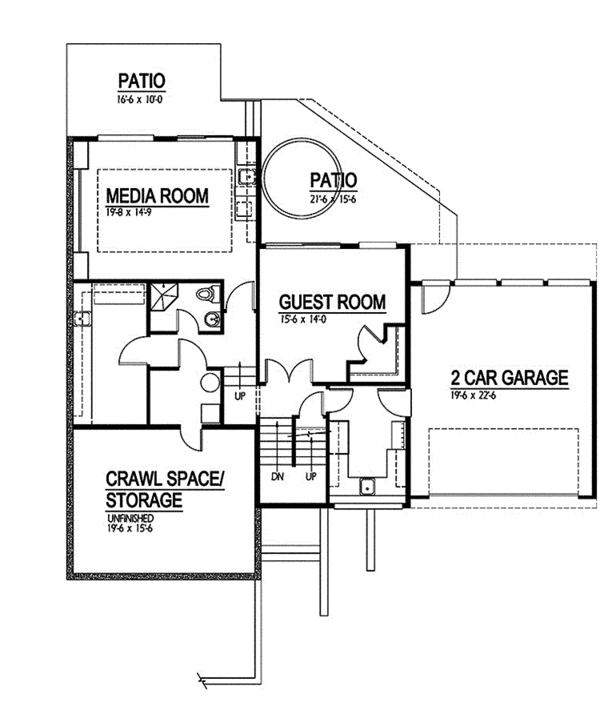

Floor Plan - Lower Floor Plan
Floor Plan - Lower Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Area Lower Floor : 1524 sq/ft
Main Floor : 1523 sq/ft
Bedroom Features Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Media Room
Upstairs Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces Deck

What's Included In This Plan Set


Level Design, LLC - John Kilbourne

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
$980.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$1960.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
