PLAN #37-260

Key Specs


3329
sq ft

4
Beds

4
Baths

2
Floors

0
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This farmhouse is far from old-fashioned with a computer/library and future game room designed into the second floor. Two wrapping porches grace the exterior offering expanded outdoor living spaces. The breakfast nook, dining and family rooms radiate off the central island kitchen. The study/bedroom at the front is situated with an adjacent full bath making this ideal for a guest room. Three bedrooms share two baths on the second floor while the master suite, with its elaborate private bath find seclusion on the first floor.

Floor Plans

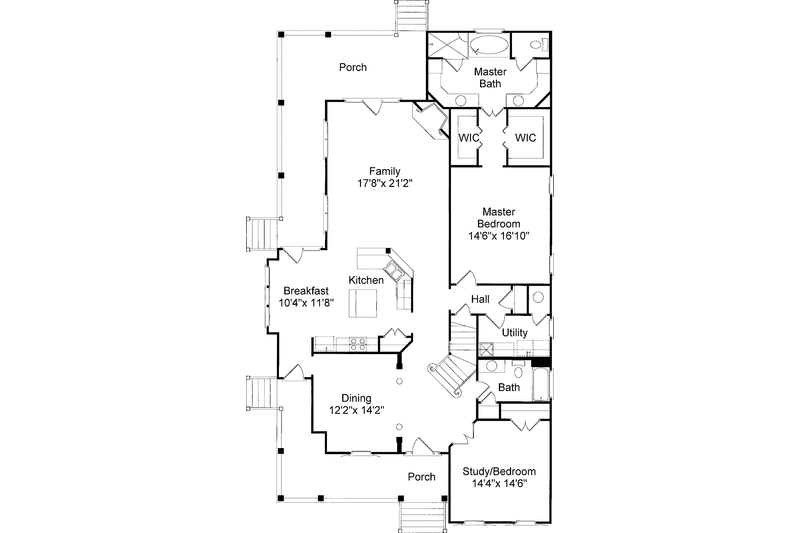

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 2193 sq/ft
Upper Floor : 1136 sq/ft
Bedroom Features Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Wrap Around Porch

What's Included In This Plan Set


Chatham Home Design

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
CAD Set :
$2722.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Reproducible Set :
$2722.50
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation
Pier:
$0.00
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
