PLAN 892-6

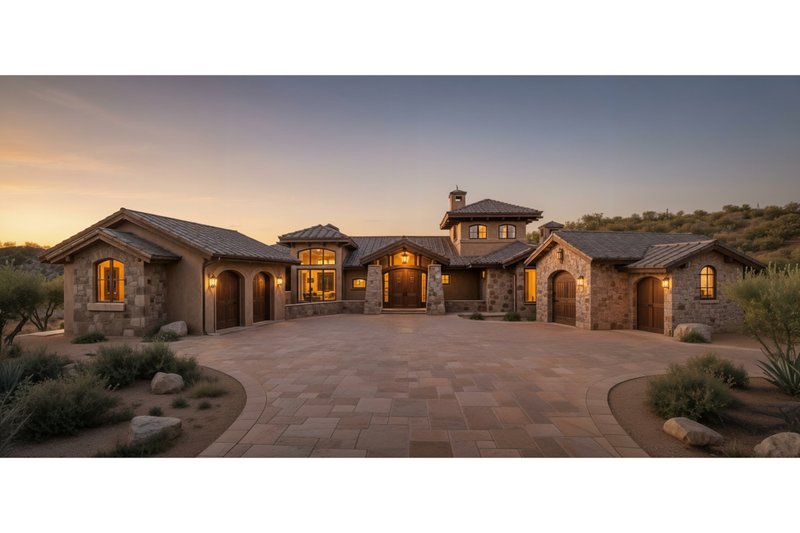

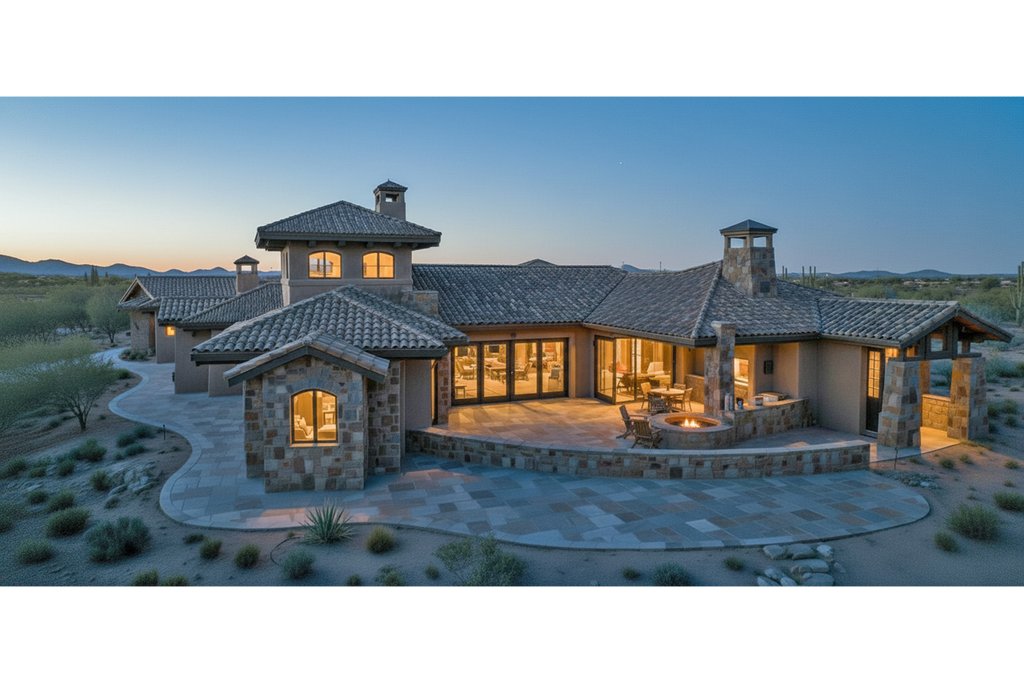

Photographs may show modified designs.
- Jump to:
- All (10)
- Floor plans (2)
Get Personalized Help
Key Specs
3579
sq ft
3
Beds
3.5
Baths
2
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 892-6
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 119' 8"
Height : 24'
Width : 100'
Area
First Floor: 3393 sq/ft
Garage: 1252 sq/ft
Second Floor: 186 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 5:12
Roof Framing : Combination Truss/Conventional
Roof Type : Concrete
Exterior Wall Framing
Exterior Wall Finish : Stucco / Stone Veneer
Framing : 2x6
Bedroom Features
2 Master Suites
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Storage Area
Garage Features
Side Entry Garage
Split Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Rooms
Dining Room:
108 sq/ft width 12' 1" x depth 10' 10"
Garage:
width 30' 6" x depth 22'
Garage 2:
width 15' x depth 24' 6"
Golf Cart Storage:
width 8' x depth 9'
Great Room:
441 sq/ft width 22' 10" x depth 19' 4"
Kitchen:
260 sq/ft width 18' x depth 14' 4"
Laundry:
84 sq/ft width 8' x depth 10' 6"
Master Closet 1:
36 sq/ft width 7' x depth 5' 2"
Master Bath 1:
166 sq/ft width 13' 6" x depth 12' 4"
Master Bath 2:
127 sq/ft width 11' 6" x depth 10' 8"
Master Bath 3:
156 sq/ft width 15' 6" x depth 14' 10"
Master Bedroom 1:
216 sq/ft width 16' x depth 13' 6"
Master Bedroom 2:
250 sq/ft width 15' x depth 16' 8"
Master Bedroom 3:
257 sq/ft width 18' 4" x depth 14'
Master Closet 2:
27 sq/ft width 4' 4" x depth 6' 4"
Master Closet 3:
28 sq/ft width 4' 8" x depth 9'
Mudroom:
61 sq/ft width 13' x depth 4' 8"
Nook:
63 sq/ft width 7' x depth 9'
Office:
81 sq/ft width 10' 10" x depth 7' 6"
Powder Room 1:
46 sq/ft width 6' 4" x depth 7' 4"
Rear Covered Outdoor Living:
308 sq/ft width 17' x depth 13'
Tower Room:
186 sq/ft width 18' x depth 13' 2"
What's Included In This Plan Set
- Floor Plans: Detailed floor plans for both the main level and upper level (if applicable), include pertinent dimensions for: walls, windows, rooms and door openings. You'll also find the location of all appliances on these plans as well.
- Exterior Elevations: These plans include 4 elevation drawings showing the front, back and both sides. Exterior materials are called out.
- Building Sections: Perhaps one of the most important pages on any set of plans, the section cuts the house in half and shows details such as wall thickness, roof construction, foundation details, roof pitch, ceiling heights, and insulation.
- Foundation and Main Level Framing: Detailed drawings Including floor framing, location and direction of floor joists, locations of footings, notes related to the foundation and framing.
- Lower Roof and Upper Floor Framing: Detailed drawings Including floor and roof framing and notes related to the upper level and roof construction.
- Detail sheets: Detailed drawings and notes showing typical and specific foundation, wall, roof, and chimney construction.
Plan Set
$1995.00
$2195.00
$2295.00
$2895.00
$795.00
Foundation
$0.00
Additional Options
$100.00
$39.00
$200.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
