PLAN #37-253

Key Specs


3590
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This luxurious waterfront design sings of Southern island influences. A front covered porch opens to a foyer, flanked by a study and dining room. The living room, warmed by a fireplace and safe from off-season ocean breezes, overlooks the rear covered porch. The island kitchen extends into a breakfast room. Beyond the covered porch, the wood deck is also accessed privately from the master suite. The suite includes a private whirlpool bath and huge walk-in closet. A guest suite is located on the first floor, while two additional bedrooms and a multimedia room are on the second level.

Floor Plans

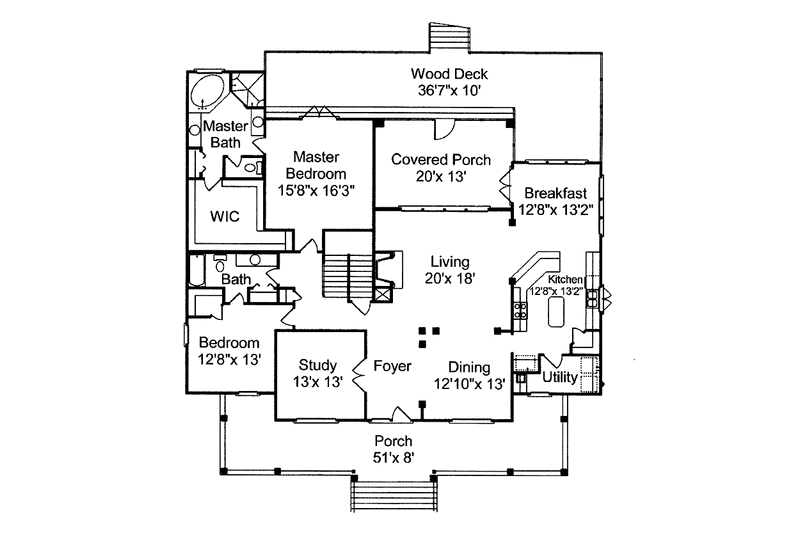

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

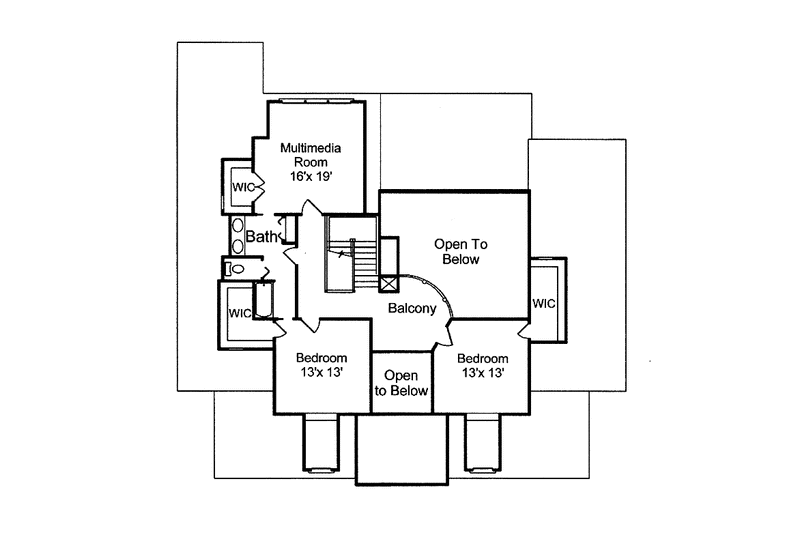

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 2390 sq/ft
Upper Floor : 1200 sq/ft
Bedroom Features Main Floor Master Bedroom
Fireplace
Formal Dining Room
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features Den Office Study Computer
Main Floor Laundry
Media Room
Storage Area
Garage Features Side Entry Garage
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Loft Balcony
Screened Porch Sunroom
Deck

What's Included In This Plan Set


Chatham Home Design

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
