Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

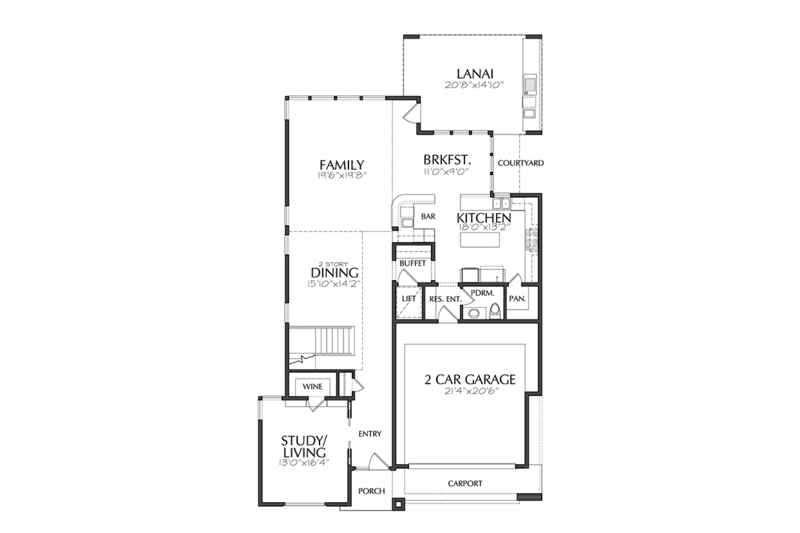

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #1021-17

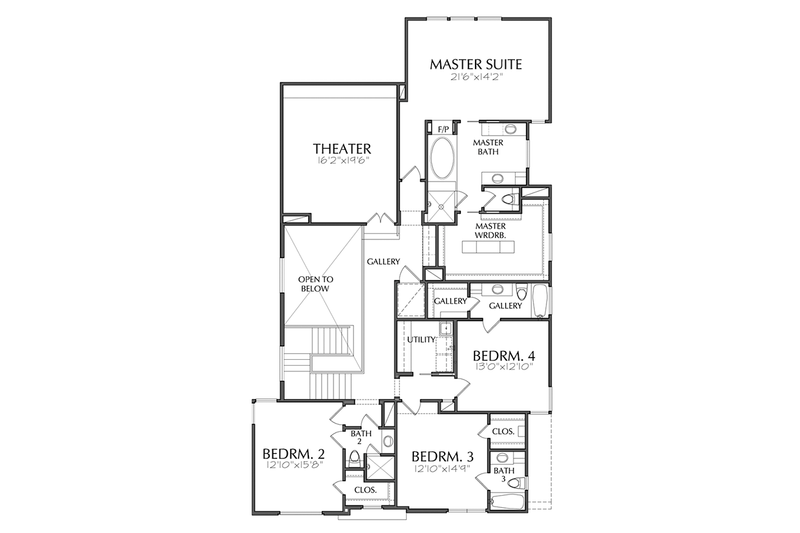

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #1021-17

Full Specs & Features

Dimension Depth : 62' 6"
Height : 29' 1"
Width : 42' 4"
Area Garage : 437 sq/ft
Main Floor : 1615 sq/ft
Upper Floor : 2233 sq/ft
Bedroom Features Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Kitchen Features Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Media Room
Upstairs Laundry
Wine Cellar
Open Floor Plan
Garage Features Front Entry Garage
Outdoor Spaces Courtyard
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
More Wheelchair Adaptable
Bedroom 2 width 12' 10" x depth 15' 8"
Bedroom 3 189 sq/ft width 12' 10" x depth 14' 9"
Bedroom 4 169 sq/ft width 13' x depth 12' 10"
Breakfast 99 sq/ft width 11' x depth 9'
Covered Rear Lanai 307 sq/ft width 20' 8" x depth 14' 10"
Dining Room 224 sq/ft width 15' 10" x depth 14' 2"
Family Room 384 sq/ft width 19' 6" x depth 19' 8"
Garage 437 sq/ft width 21' 4" x depth 20' 6"
Kitchen 237 sq/ft width 18' x depth 13' 2"
Master Suite 305 sq/ft width 21' 6" x depth 14' 2"
Study/ Living 212 sq/ft width 13' x depth 16' 4"
Theater 315 sq/ft width 16' 2" x depth 19' 6"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
