PLAN #1021-14

Select Plan Set Options
What's included?
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #1021-14

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

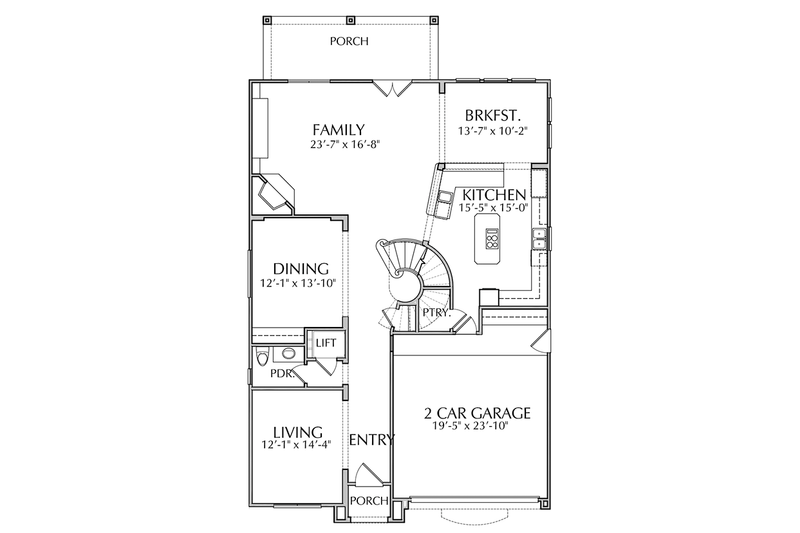

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1021-14

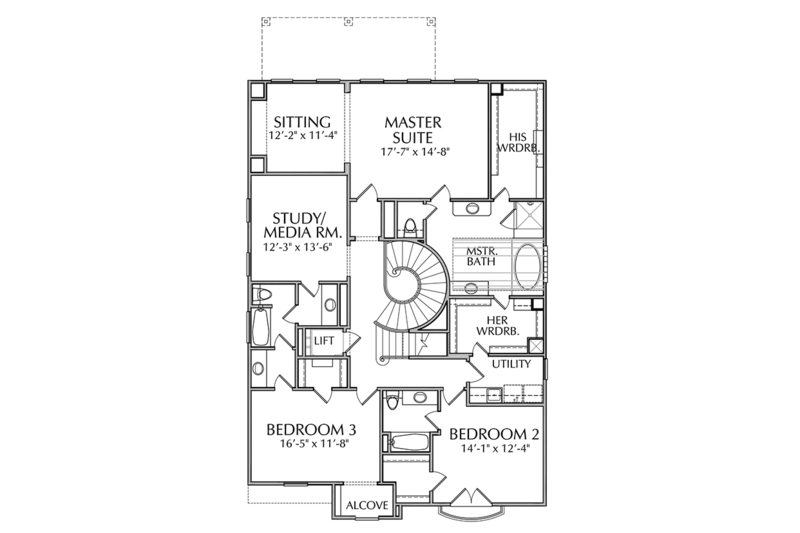

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #1021-14

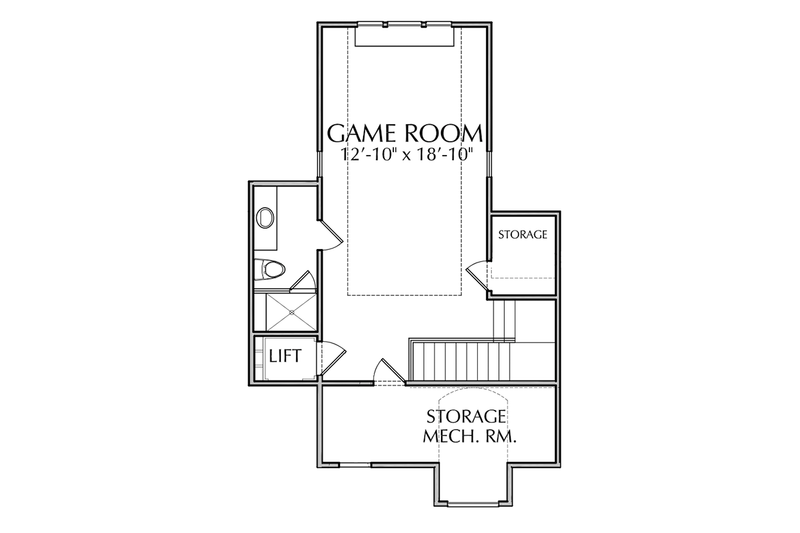

Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #1021-14

Full Specs & Features

Dimension Depth : 63' 8"
Height : 37' 8"
Width : 37' 10"
Area Garage : 449 sq/ft
Main Floor : 1560 sq/ft
Upper Floor : 1919 sq/ft
Bedroom Features Upstairs Master Bedrooms
Walk In Closet
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Master Sitting Area
Media Room
Upstairs Laundry
Open Floor Plan
Garage Features Front Entry Garage
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Loft Balcony
More Wheelchair Adaptable
Bedroom 2 174 sq/ft width 14' 1" x depth 12' 4"
Bedroom 3 192 sq/ft width 16' 5" x depth 11' 8"
Breakfast 138 sq/ft width 13' 7" x depth 10' 2"
Dining Room 167 sq/ft width 12' 1" x depth 13' 10"
Family Room 393 sq/ft width 23' 7" x depth 16' 8"
Game Room 243 sq/ft width 12' 10" x depth 18' 10"
Garage 449 sq/ft width 19' 5" x depth 23' 10"
Kitchen 231 sq/ft width 15' 5" x depth 15'
Living Room 173 sq/ft width 12' 1" x depth 14' 4"
Master Sitting 138 sq/ft width 12' 2" x depth 11' 4"
Master Suite 258 sq/ft width 17' 7" x depth 14' 8"
Study/ Media 165 sq/ft width 12' 3" x depth 13' 6"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

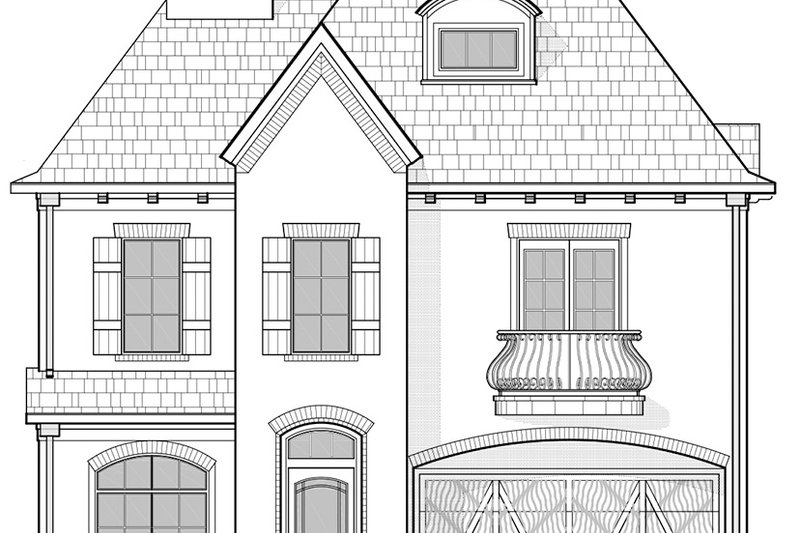

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Wood 2x4:
Wood 2x4
Additional Options
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.

Other Plans By this Designer
