PLAN 1021-13

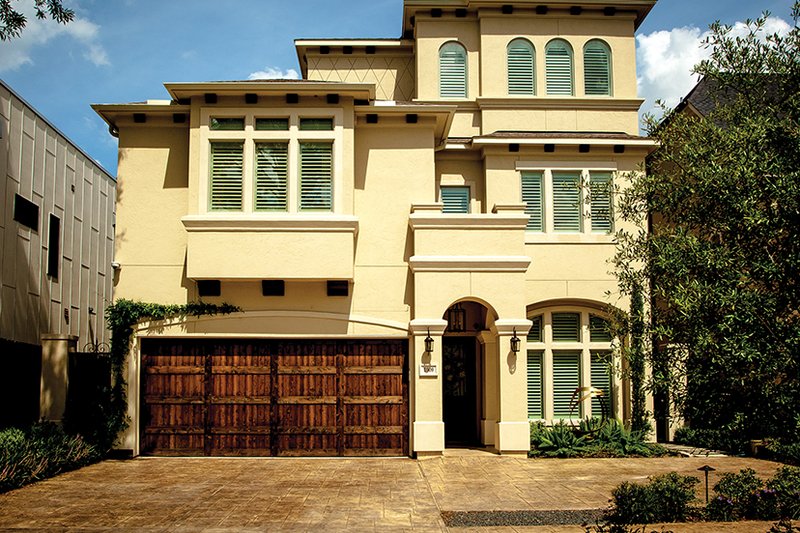

Mediterranean Exterior - Front Elevation Plan #1021-13
Mediterranean Exterior - Front Elevation Plan #1021-13
Mediterranean Exterior - Front Elevation Plan #1021-13

Select Plan Set Options

What's included?
NOW $1350.00
You save $150.00
(10% savings)
Sale ends soon!
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1021-13

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Full Specs & Features

Depth : 65' 2"
Height : 40' 10"
Width : 38' 8"
First Floor: 1641 sq/ft height 10'
Garage: 458 sq/ft
Second Floor: 2126 sq/ft height 10'
Third Floor: 426 sq/ft height 10'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Composition
Secondary Pitch : 3:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Media Room
Mud Room
Open Floor Plan
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wheelchair Adaptable

Bedroom 2:

176 sq/ft width 11' 4" x depth 15' 6"

Bedroom 3:

230 sq/ft width 15' x depth 15' 4"


173 sq/ft width 14' 10" x depth 11' 8"

Covered Rear Lanai:

175 sq/ft width 21' 10" x depth 8'

Covered Roof Deck:

199 sq/ft width 13' x depth 15' 4"

Dining Room:

196 sq/ft width 11' 6" x depth 17'

Family Room:

382 sq/ft width 21' 10" x depth 17' 6"

Game Room:

272 sq/ft width 16' 4" x depth 16' 8"


458 sq/ft width 20' x depth 37'

Hobby/ Utility Room:

91 sq/ft width 11' 4" x depth 8'


205 sq/ft width 14' 10" x depth 13' 10"

Living Room:

155 sq/ft width 11' 6" x depth 13' 6"

Master Suite:

333 sq/ft width 21' 6" x depth 15' 6"

Study/ Media:

168 sq/ft width 11' 4" x depth 14' 10"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.


Wood 2x4:
Wood 2x4

Additional Options

Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
