PLAN 70-1152
Key Specs
5260
sq ft
4
Beds
4
Baths
1
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Get Personalized Help
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 70-1152
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Height : 25' 7"
Width : 68' 4"

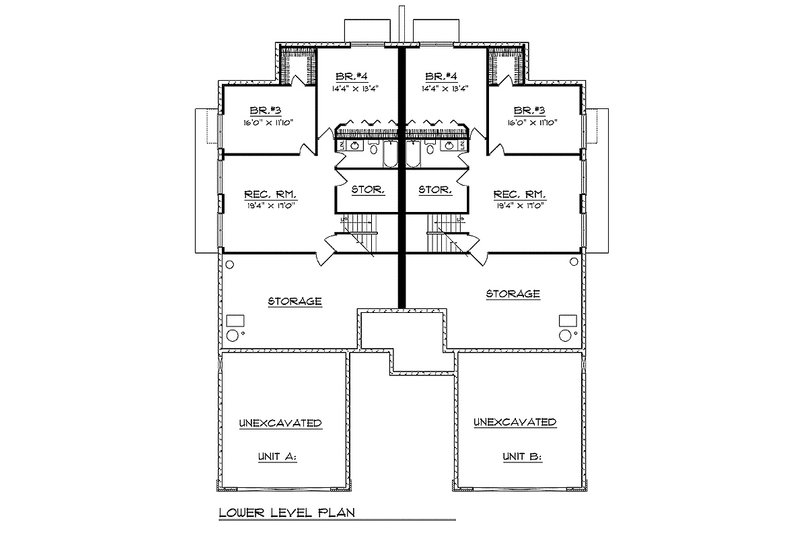

Basement Living: 1008 sq/ft

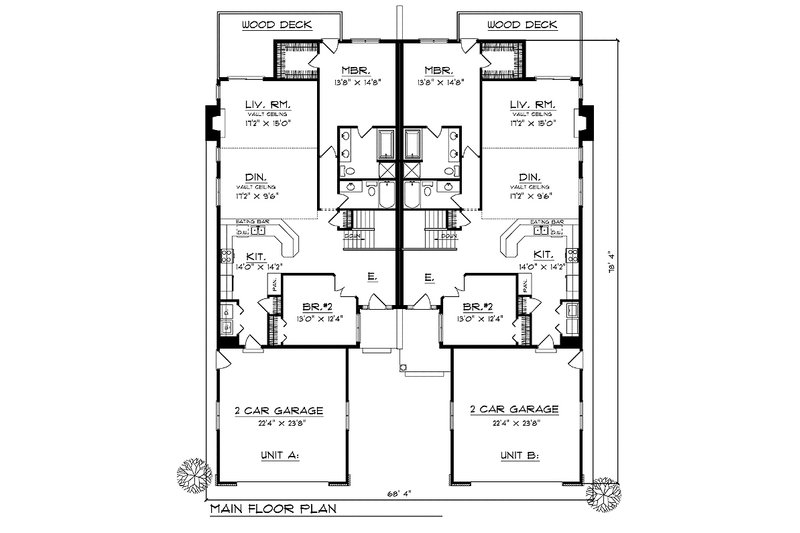

First Floor: 1622 sq/ft height 9'
First Floor: 1622 sq/ft height 9'
Garage: 528 sq/ft
Garage: 528 sq/ft
Main Ceiling : 9'
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12
Framing : 2x6
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Hobby Rec Room Game Room
Storage Area
Bathroom 2:
50 sq/ft width 10' x depth 5'
Bathroom 2:
50 sq/ft width 10' x depth 5'
Bathroom 3:
53 sq/ft width 10' 9" x depth 5'
Bathroom 3:
53 sq/ft width 10' 9" x depth 5'
Bedroom 2:
160 sq/ft width 13' x depth 12' 4"
Bedroom 2:
160 sq/ft width 13' x depth 12' 4"
Bedroom 3:
189 sq/ft width 16' x depth 11' 10"
Bedroom 3:
189 sq/ft width 16' x depth 11' 10"
Bedroom 4:
191 sq/ft width 14' 4" x depth 13' 4"
Bedroom 4:
191 sq/ft width 14' 4" x depth 13' 4"
Deck:
108 sq/ft width 9' 8" x depth 11' 3"
Deck:
108 sq/ft width 9' 8" x depth 11' 3"
Dining Room:
163 sq/ft width 17' 2" x depth 9' 6"
Dining Room:
163 sq/ft width 17' 2" x depth 9' 6"
Game Room:
328 sq/ft width 19' 4" x depth 17'
Game Room:
328 sq/ft width 19' 4" x depth 17'
Garage:
528 sq/ft width 22' 4" x depth 23' 8"
Garage:
528 sq/ft width 22' 4" x depth 23' 8"
Kitchen:
198 sq/ft width 14' x depth 14' 2"
Kitchen:
198 sq/ft width 14' x depth 14' 2"
Laundry Room:
18 sq/ft width 3' x depth 6' 2"
Laundry Room:
18 sq/ft width 3' x depth 6' 2"
Living Room:
17 sq/ft width 1' 2" x depth 15'
Living Room:
17 sq/ft width 1' 2" x depth 15'
Master Bathroom:
90 sq/ft width 10' x depth 9'
Master Bathroom:
90 sq/ft width 10' x depth 9'
Master Bedroom:
200 sq/ft width 13' 8" x depth 14' 8"
Master Bedroom:
200 sq/ft width 13' 8" x depth 14' 8"
Master Closet:
90 sq/ft width 10' x depth 9'
Master Closet:
90 sq/ft width 10' x depth 9'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

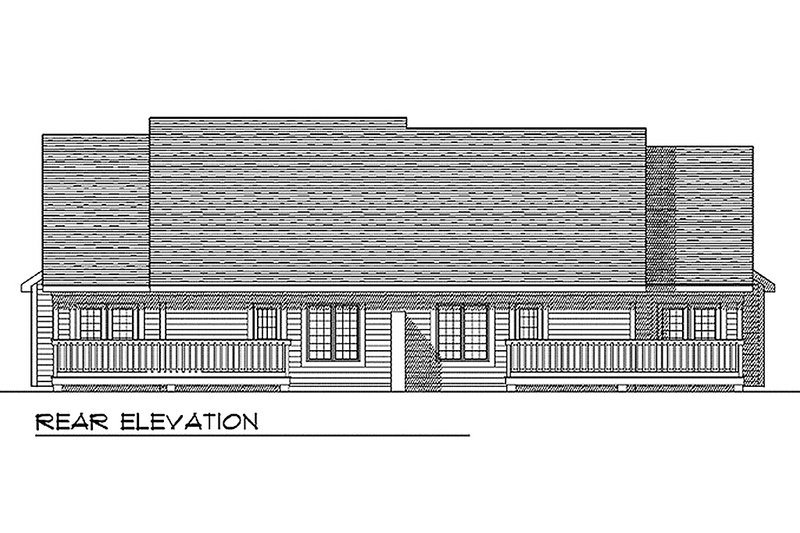

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
| 5 Copy Set : $2893.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $3156.00 |
8 printed plan sets mailed to you. |
| PDF Set : $4050.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $4050.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $6312.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Crawlspace: $495.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $495.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Right-Reading Reverse : $295.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Mirror Reversed Sets : $40.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
