PLAN 132-557

Key Specs

5273
sq ft

4
Beds

4
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Floor Plans

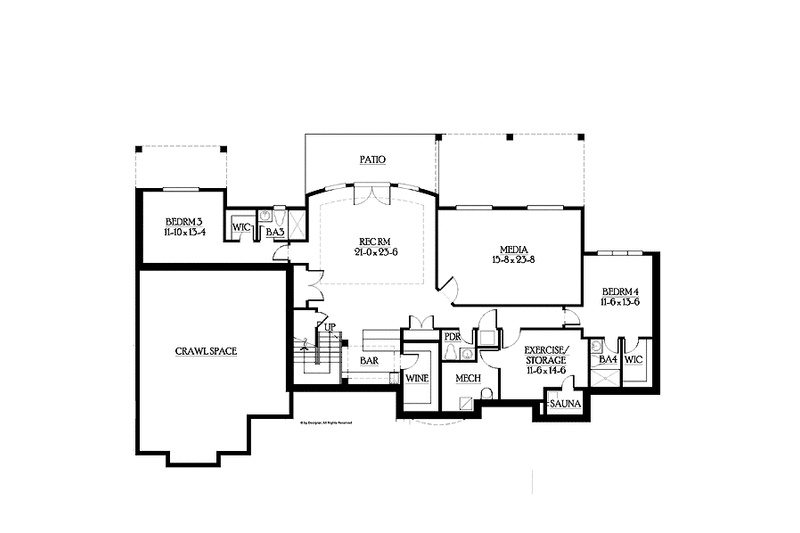

Floor Plan - Lower Floor Plan

Reverse

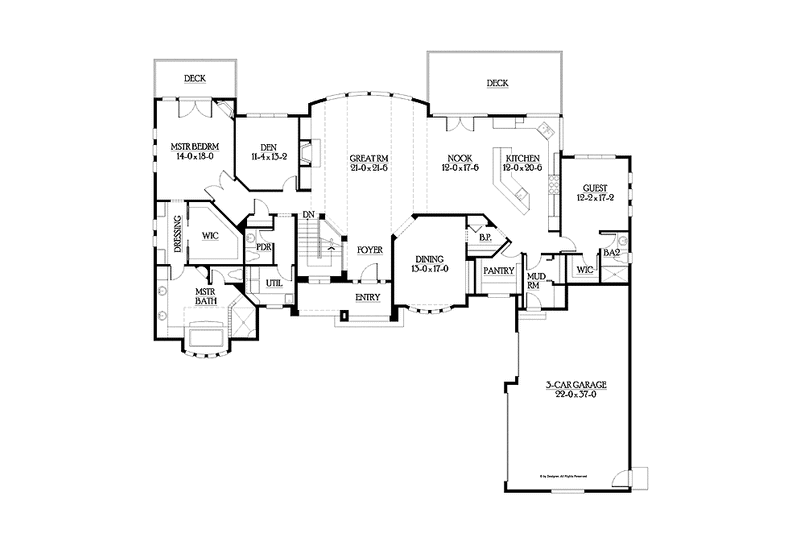

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 72' 6"
Height : 17' 6"
Width : 86' 6"

Area

Basement Living: 2304 sq/ft height 9'
First Floor: 2969 sq/ft height 9'
Garage: 785 sq/ft height 9'
Porch: 104 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Guest Suite
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Media Room
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Wine Cellar

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard
Covered Front Porch
Deck

Rooms

Bedroom 3:

157 sq/ft width 11' 10" x depth 13' 4"

Bedroom 4:

155 sq/ft width 11' 6" x depth 13' 6"

Den:

149 sq/ft width 11' 4" x depth 13' 2"

Dining Room:

221 sq/ft width 13' x depth 17'

Exercise Room:

166 sq/ft width 11' 6" x depth 14' 6"

Garage:

814 sq/ft width 22' x depth 37'

Great Room:

451 sq/ft width 21' x depth 21' 6"

Guest Bedroom:

208 sq/ft width 12' 2" x depth 17' 2"

Kitchen:

246 sq/ft width 12' x depth 20' 6"

Master Bedroom:

252 sq/ft width 14' x depth 18'

Media Room:

370 sq/ft width 15' 8" x depth 23' 8"

Nook:

210 sq/ft width 12' x depth 17' 6"

Recreation Room:

493 sq/ft width 21' x depth 23' 6"

What's Included In This Plan Set

Purchasing a CAD set or PDF set gives you a multi-build license. The 5 copy set allows you to build the home one time.

If you are building this plan in the state of Washington, please call us before placing your order.

Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
