Key Specs


5351
sq ft

5
Beds

5.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

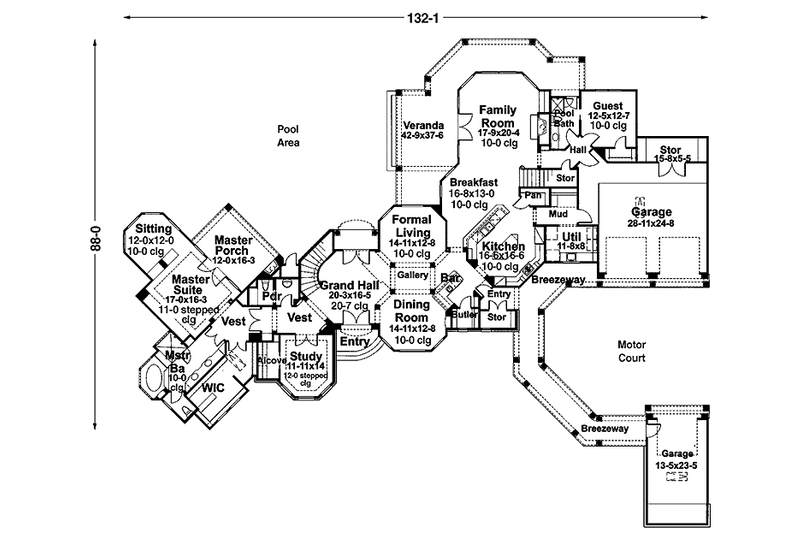

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #120-219

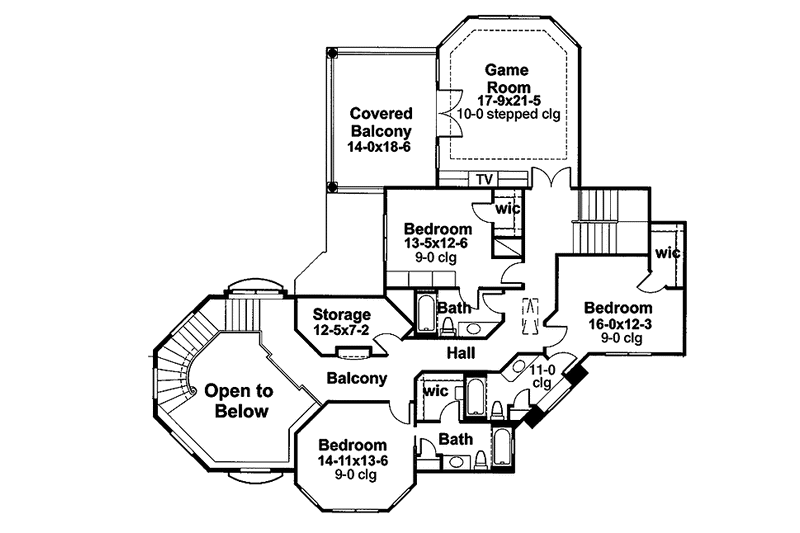

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #120-219

Full Specs & Features


Dimension
Depth : 88'
Height : 36'
Width : 133'
Area
Basement Unfinished: 3697 sq/ft
First Floor: 3697 sq/ft
Second Floor: 1654 sq/ft
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x4
Bedroom Features
Guest Suite
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Rooms

Bedroom 2:

201 sq/ft width 14' 11" x depth 13' 6"

Bedroom 3:

197 sq/ft width 16' x depth 12' 4"

Bedroom 4:

167 sq/ft width 13' 5" x depth 12' 6"

Breakfast Nook:

216 sq/ft width 16' 8" x depth 13'

Dining Room:

188 sq/ft width 14' 11" x depth 12' 8"

Entry:

333 sq/ft width 20' 4" x depth 16' 5"

Family Room:

362 sq/ft width 17' 10" x depth 20' 4"

Game Room:

381 sq/ft width 17' 10" x depth 21' 5"

Guest Bedroom:

156 sq/ft width 12' 5" x depth 12' 7"

Kitchen:

272 sq/ft width 16' 6" x depth 16' 6"

Living Room:

188 sq/ft width 14' 11" x depth 12' 8"

Master Bathroom:

288 sq/ft width 18' x depth 16'

Master Bedroom:

277 sq/ft width 17' x depth 16' 4"

Parlor:

144 sq/ft width 12' x depth 12'

Storage:

88 sq/ft width 12' 5" x depth 7' 2"

Study:

166 sq/ft width 11' 11" x depth 14'

Utility Room:

93 sq/ft width 11' 8" x depth 8'

What's Included In This Plan Set


  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
