PLAN #928-261

Key Specs


6717
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

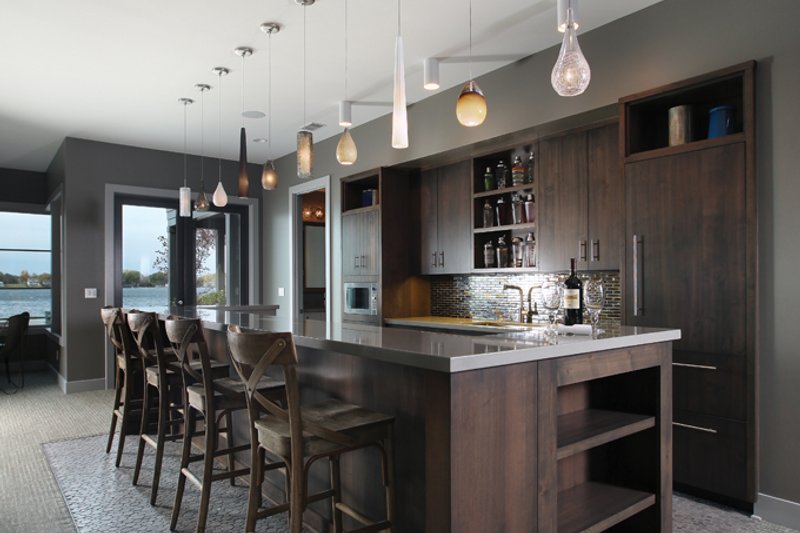

Designed by Visbeen Architects, the Hasserton is a sleek take on the waterfront home. The main floor offers homeowners areas to lounge, a spacious kitchen, a formal dining room, access to outdoor living, and a luxurious master suite (check out the closet!). The upper level features two additional bedrooms and a loft, while the lower level is the entertainment center of the home, complete with a curved beverage bar and comfortable sitting areas. A guest bedroom and exercise facility are also located on this floor. No wonder this home won Global Choice at the 2013 American Residential Design Awards! It also won an award at the 2013 Best in American Living Awards.

Floor Plans


Floor Plan - Lower Floor Plan
Optional Finished Basement
Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #928-261
Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #928-261

Full Specs & Features


Dimension
Depth : 120'
Height : 26' 9"
Width : 76'
Area
Basement Living: 2186 sq/ft height 10'
First Floor: 3576 sq/ft height 10'
Second Floor: 955 sq/ft height 9'
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Loft
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Balcony
Deck
More
Jack & Jill Bath
Rooms

Bedroom 2:

width 15' x depth 11'

Bedroom 3:

width 11' 6" x depth 16'

Bedroom 4:

width 15' 10" x depth 11' 7"

Dining:

width 15' x depth 13' 3"

Exercise:

width 16' 10" x depth 16' 4"

Family Room:

width 40' 8" x depth 14'

Garage:

width 39' x depth 23'

Kitchen:

width 23' 2" x depth 20' 2"

Living Room:

width 30' 4" x depth 14'

Loft:

width 13' 11" x depth 16'

Master Bedroom:

width 13' 6" x depth 13' 2"

Porch Screened:

width 21' 6" x depth 15' 6"

Sitting Area:

width 15' x depth 12' 4"

Study:

width 15' x depth 9' 6"

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.

Plan Set

PDF Set :
$1995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse :
195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Construction Engineering Guide :
39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
