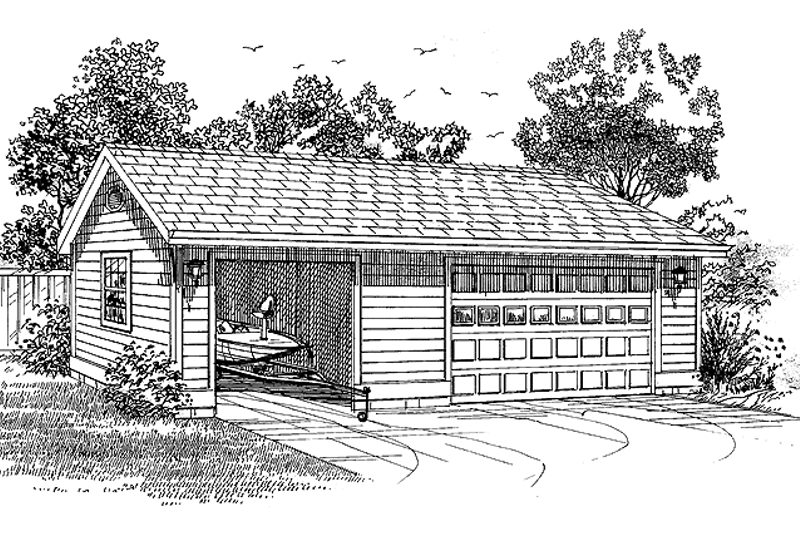

Have more vehicles than space to store them? This clever garage design provides 1,008 square feet and the answer to your vehicle storage problems. One side is a two-car garage, with plenty of space for both vehicles. The other side accommodates a boat or any other recreational vehicle easily--and is extra long for those luxury "toys." A gable roof and windows on three sides pretties up the exterior and makes this outbuilding a good match for your main residence.
Full Specs & Features
Depth : 28'
Height : 15'
Width : 36'
First Floor: 1008 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

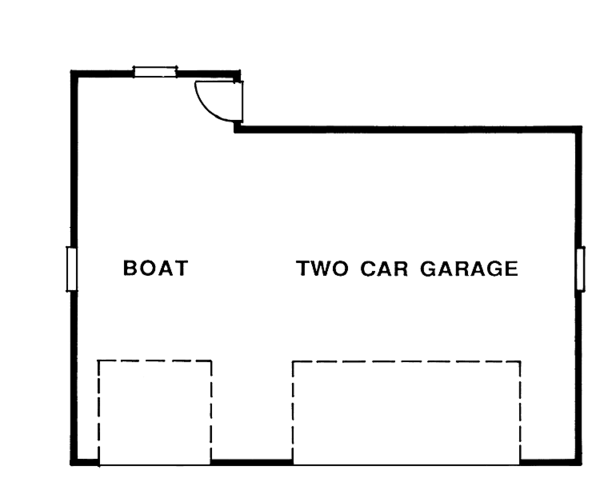

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
