PLAN 1107-46
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

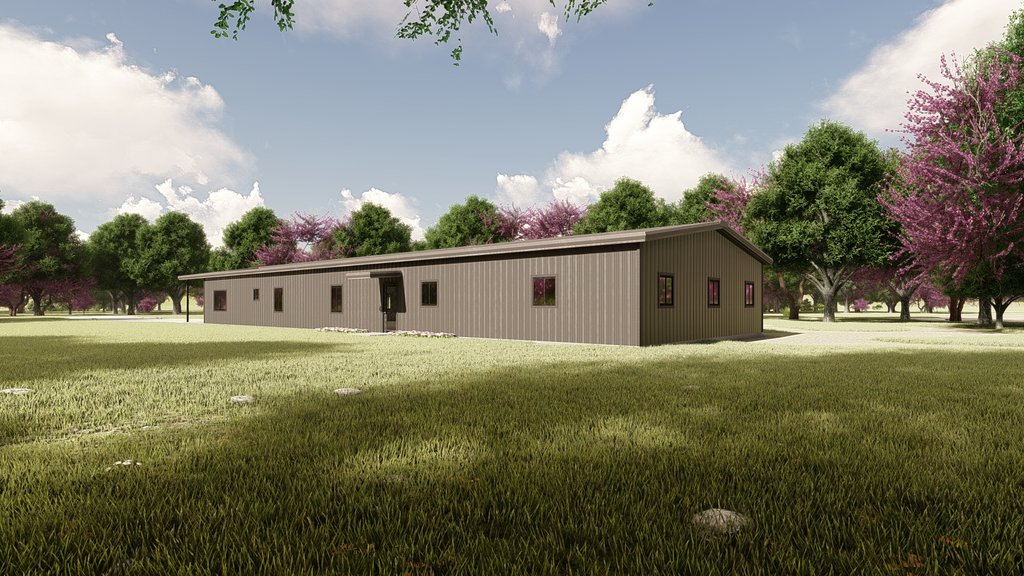

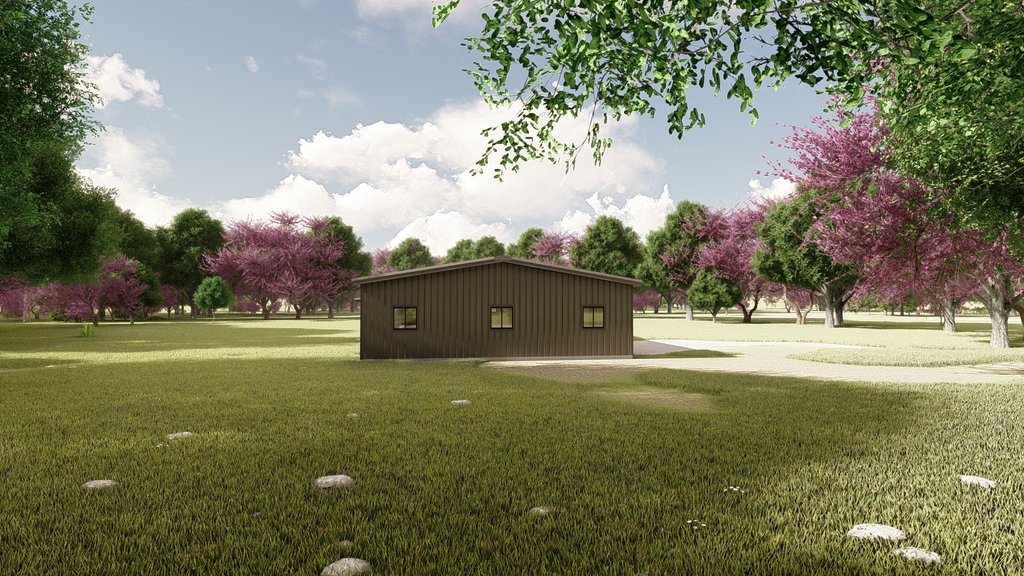

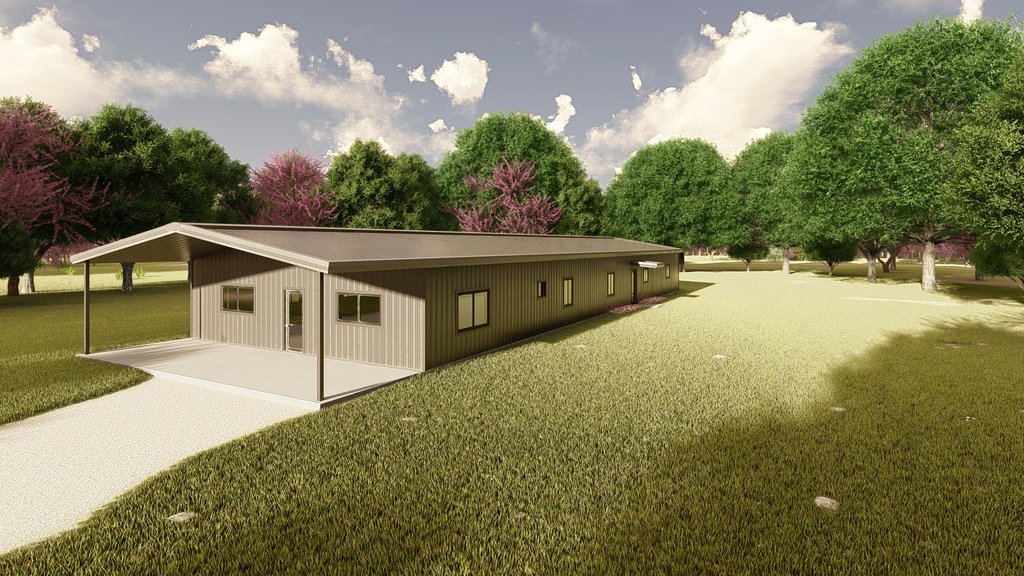

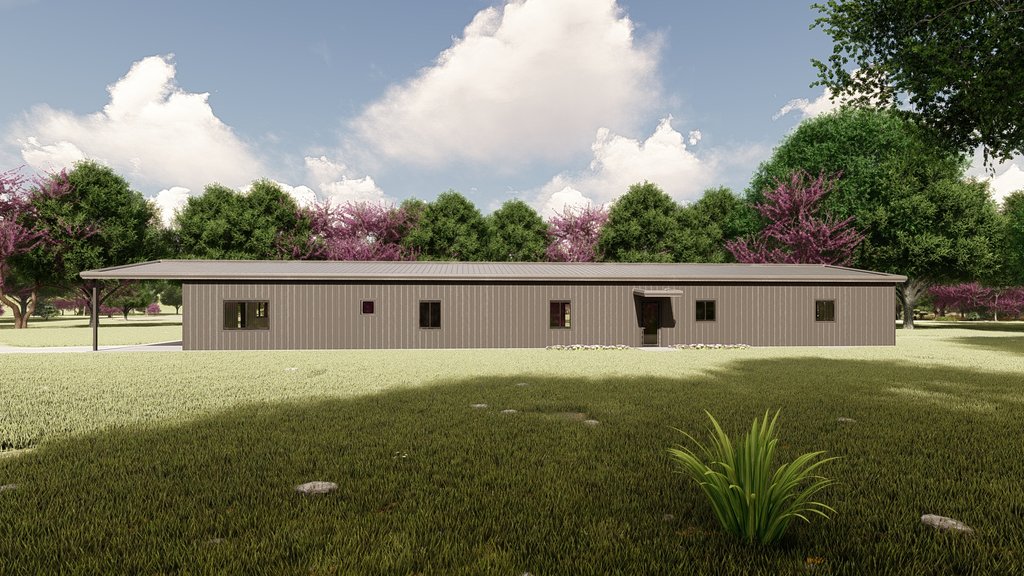

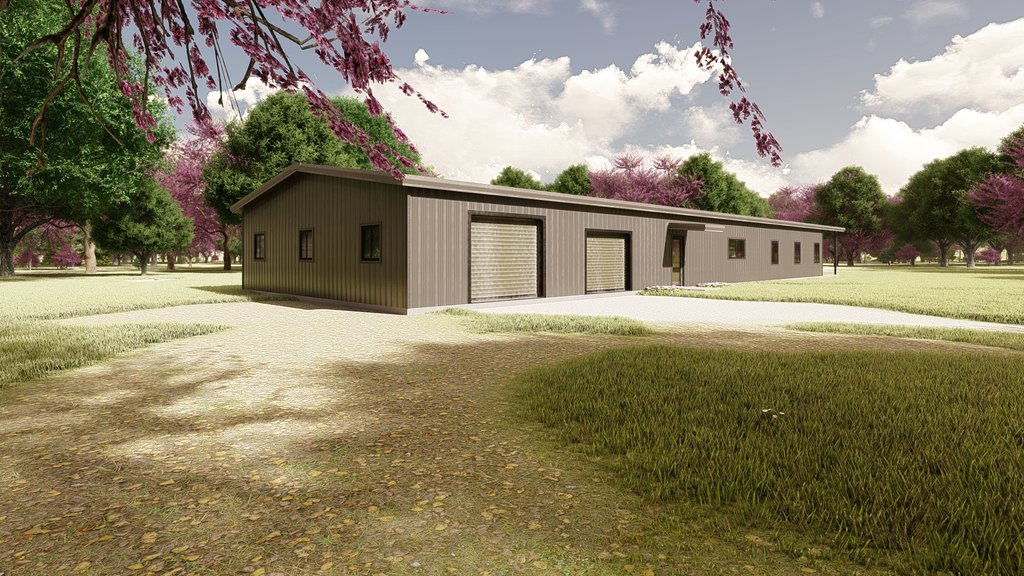

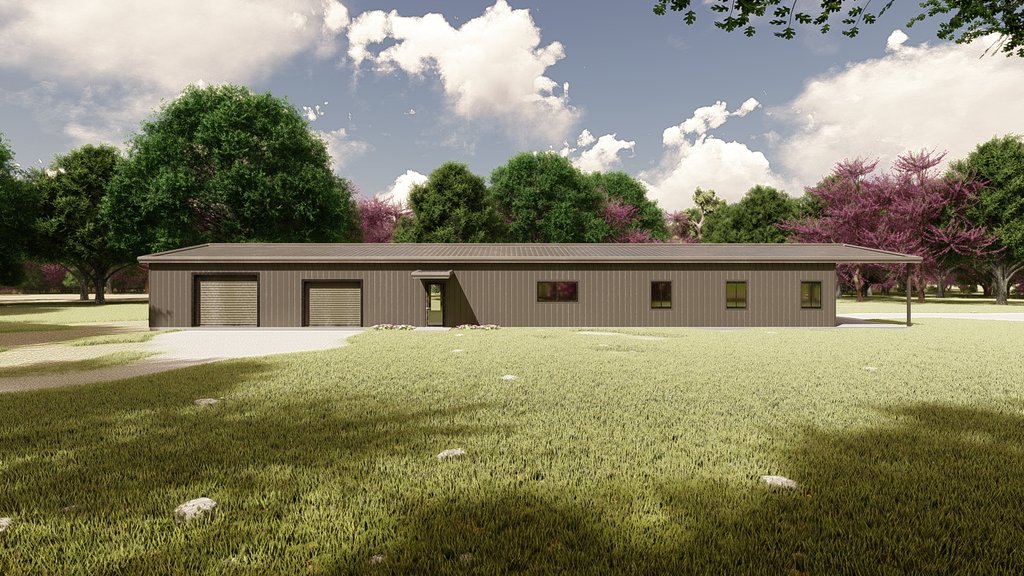

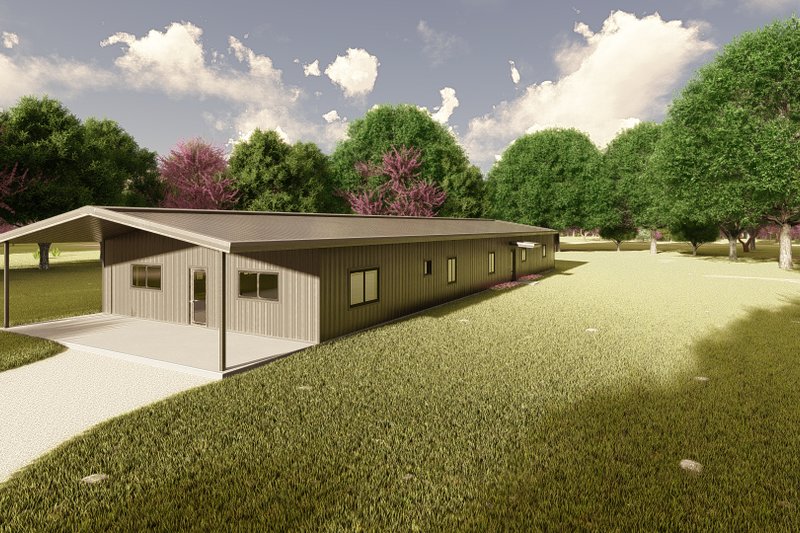

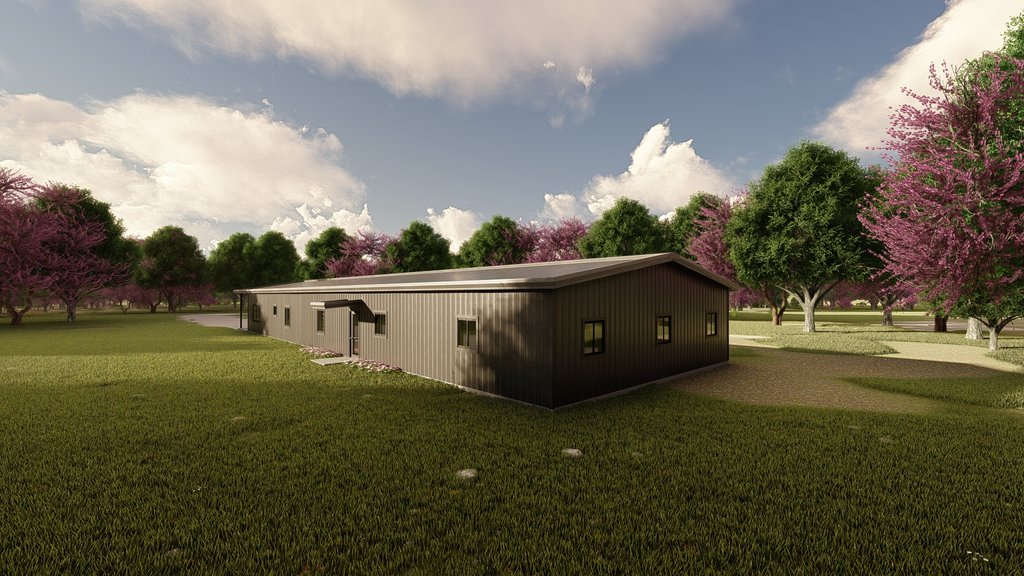

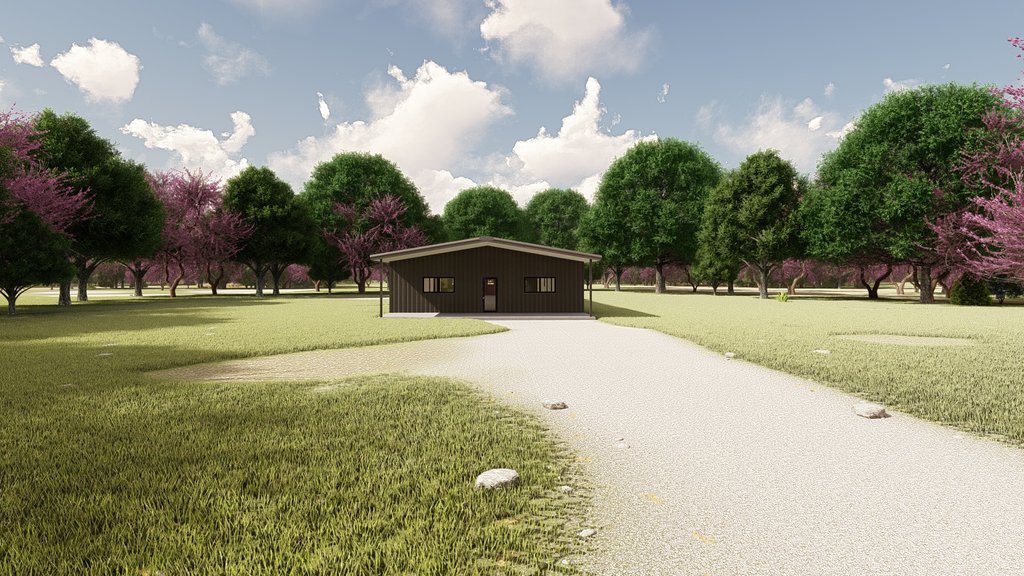

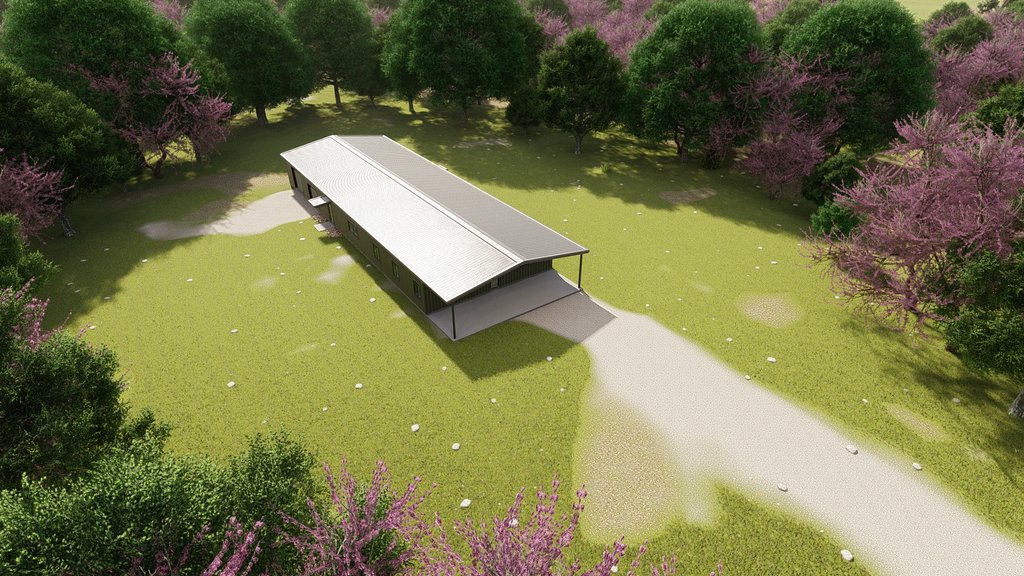

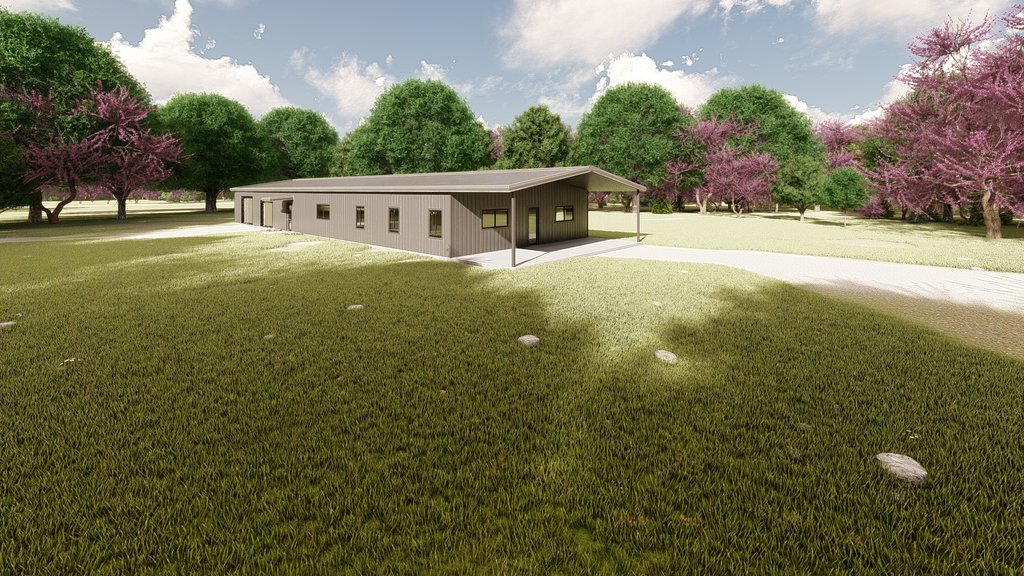

Traditional, Cost-Effective Barndominium with Smart Functionality This home is a thoughtfully designed traditional barndominium that combines cost-effective construction with practical, livable spaces. Offering 2,016 square feet of living space, this home also includes an oversized 1,584-square-foot garage/shop area and 482 square feet of covered porch area, perfect for both work and leisure. The home features 2 bedrooms and 2 bathrooms, with flexible spaces designed for modern living. The master suite includes a large walk-in closet and a master bath with a walk-in shower, providing a private and comfortable retreat. The open-concept kitchen, living, and dining area creates a welcoming hub for family life and entertaining. The kitchen is designed for efficiency and style, featuring a large center island and a walk-in pantry for ample storage. Additional highlights include an oversized laundry room for convenience, a large storage area in the garage, and an office space that can easily be converted into a third bedroom, offering flexibility as your family or needs grow. This plan perfectly blends traditional charm, functional design, and cost-conscious construction, making it an ideal choice for homeowners seeking a versatile, efficient, and inviting barndominium.
Floor Plans

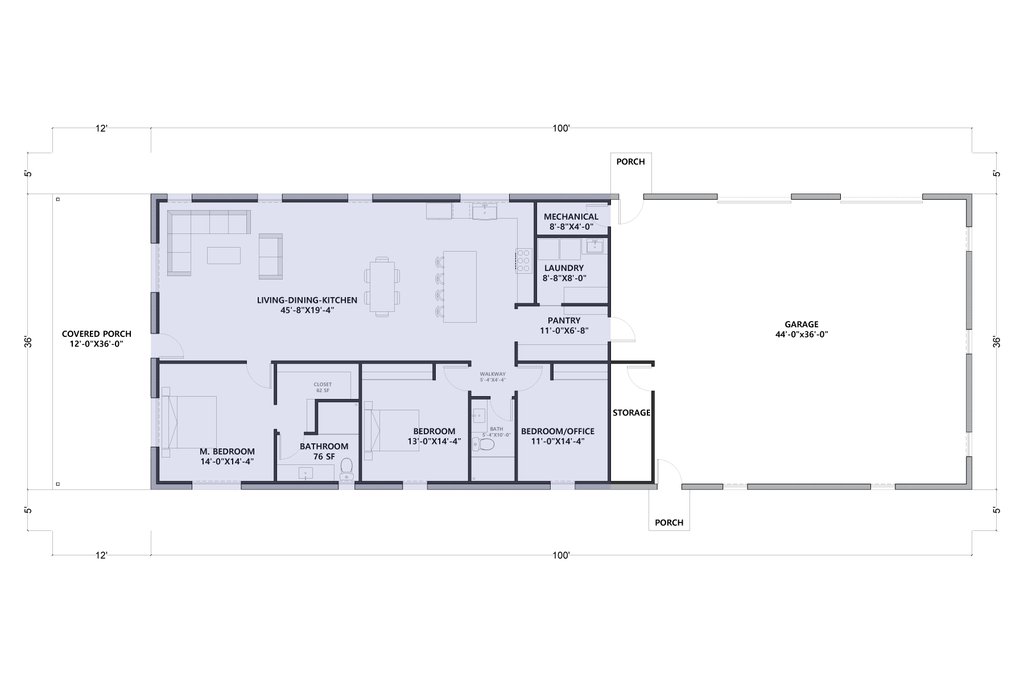

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 112'
Height : 13'
Width : 36'
Area
Garage : 1584 sq/ft
Main Floor : 2016 sq/ft
Porch : 482 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 2:12
Roof Framing : Steel Rafters
Roof Type : PBR
Exterior Wall Framing
Exterior Wall Finish : PBR
Framing : Bolt-up steel + 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Economical To Build
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
