PLAN 1107-51
Photographs may show modified designs.
- Jump to:
- All (12)
- Floor plans (2)
Get Personalized Help
Key Specs
7558
sq ft
6
Beds
5.5
Baths
2
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBFALL
Use Code CTBFALL
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1107-51
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

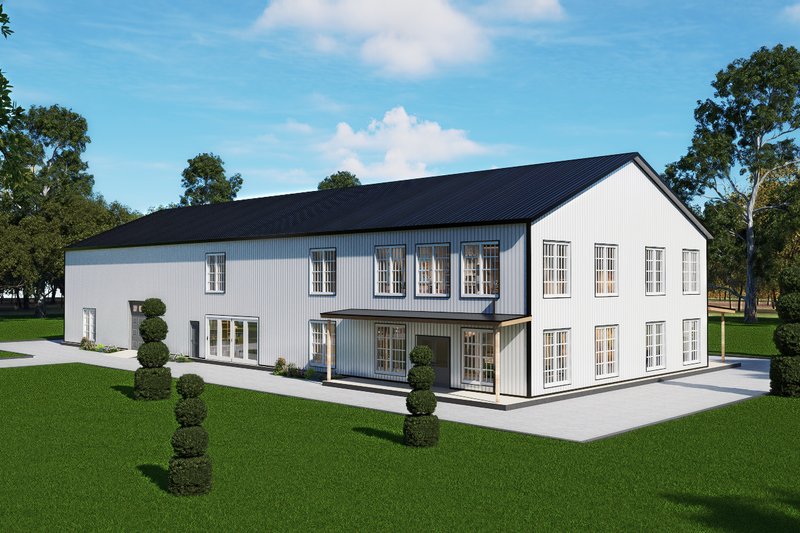

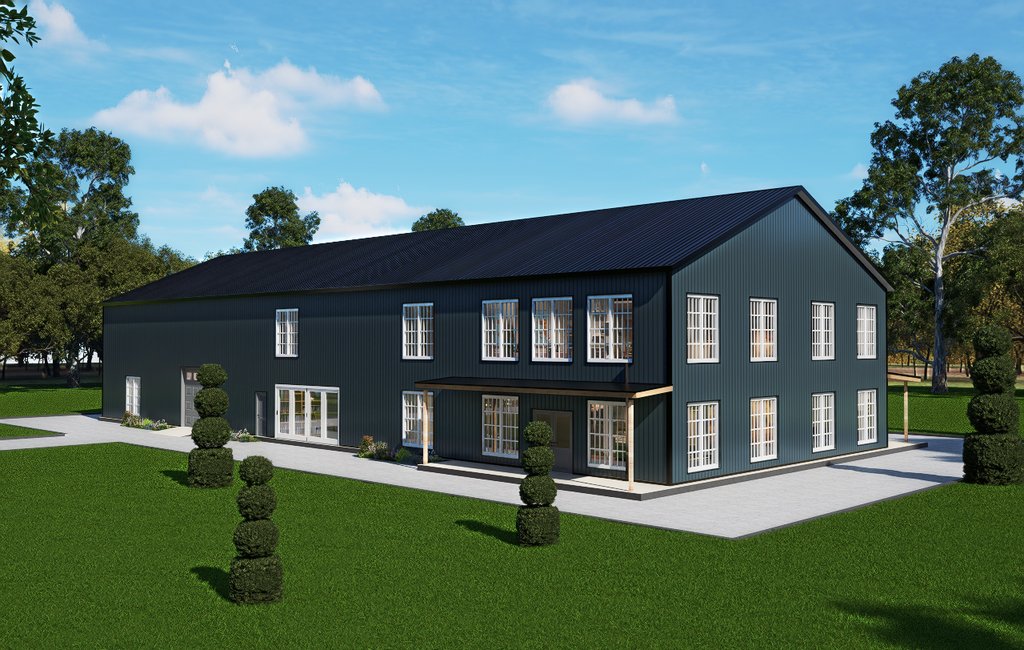

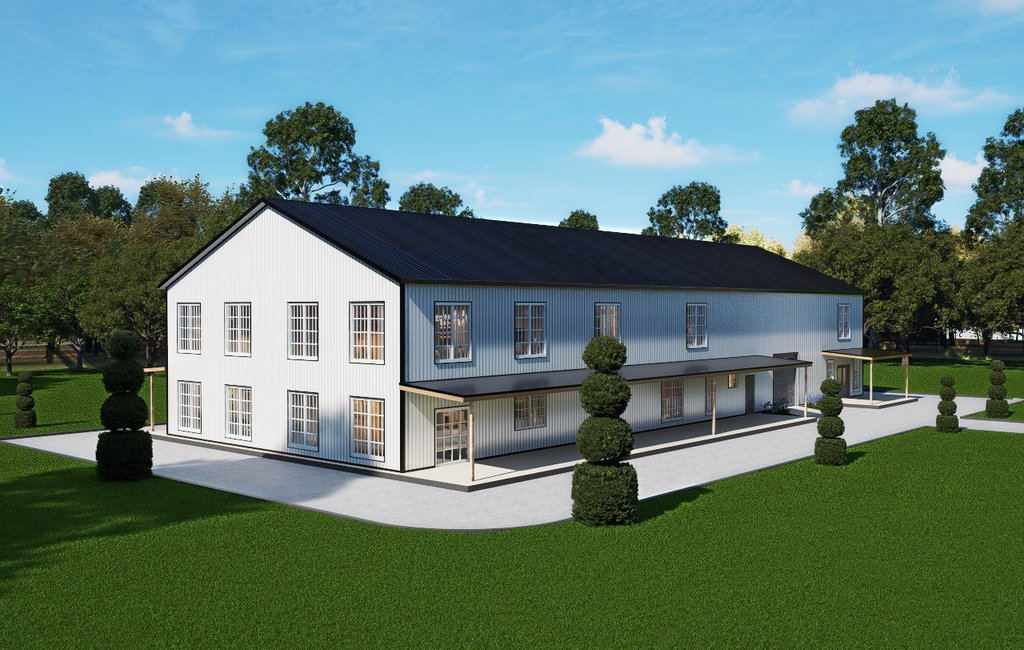

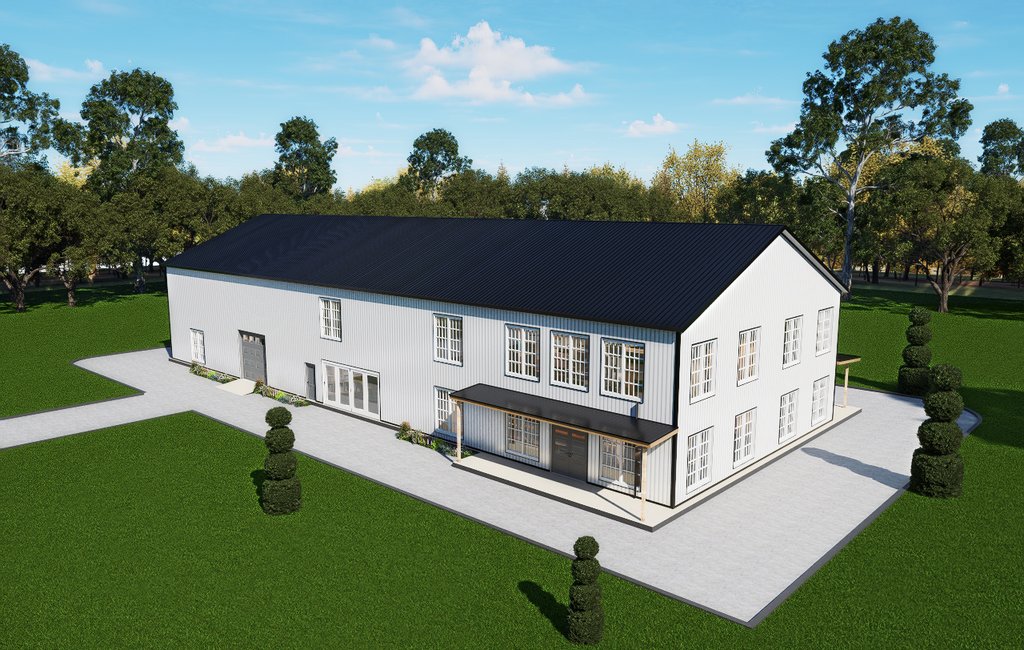

A Luxurious Take on Traditional Barndominium Living With over 7,500 square feet of refined living space, this design seamlessly blends timeless, traditional design with the expansive comfort of modern luxury. This stunning two-story barndominium offers a thoughtfully designed layout perfect for multi-generational living, entertaining, and everyday life. Main Residence Step into a grand open-concept living space featuring soaring two-story ceilings in the living room, flooding the home with natural light. The chef-inspired kitchen boasts a massive walk-in pantry, ideal for storage and prep, while an oversized laundry room and additional large storage closet add everyday convenience. The master suite is a true retreat, complete with a spa-like bathroom featuring a wet room and a massive walk-in closet. With four spacious bedrooms and three full baths, there’s room for the whole family to spread out in comfort. Upstairs, a versatile game/family/play room anchors the second floor, flanked by two bedrooms connected via a Jack and Jill bath. Garage & Loft Connecting the main house and the guest apartment is a sprawling 1,870 sqft garage, perfect for car enthusiasts or hobbyists. The garage includes a half bath and a staircase leading to a 960 sqft loft area complete with its own half bath and storage room — ideal for a home office, studio, or recreational retreat. Attached Apartment Private yet connected, the 960 sqft attached apartment features 2 bedrooms, 1 full bath, a full kitchen, living room, and private exterior access. Whether used as an in-law suite, teen retreat, or a short/long-term rental, this space offers exceptional flexibility without compromising comfort or privacy. The plan isn’t just a home — it’s a lifestyle. Designed for luxury, function, and versatility, this barndominium is the perfect place to live, work, and thrive.
Floor Plans

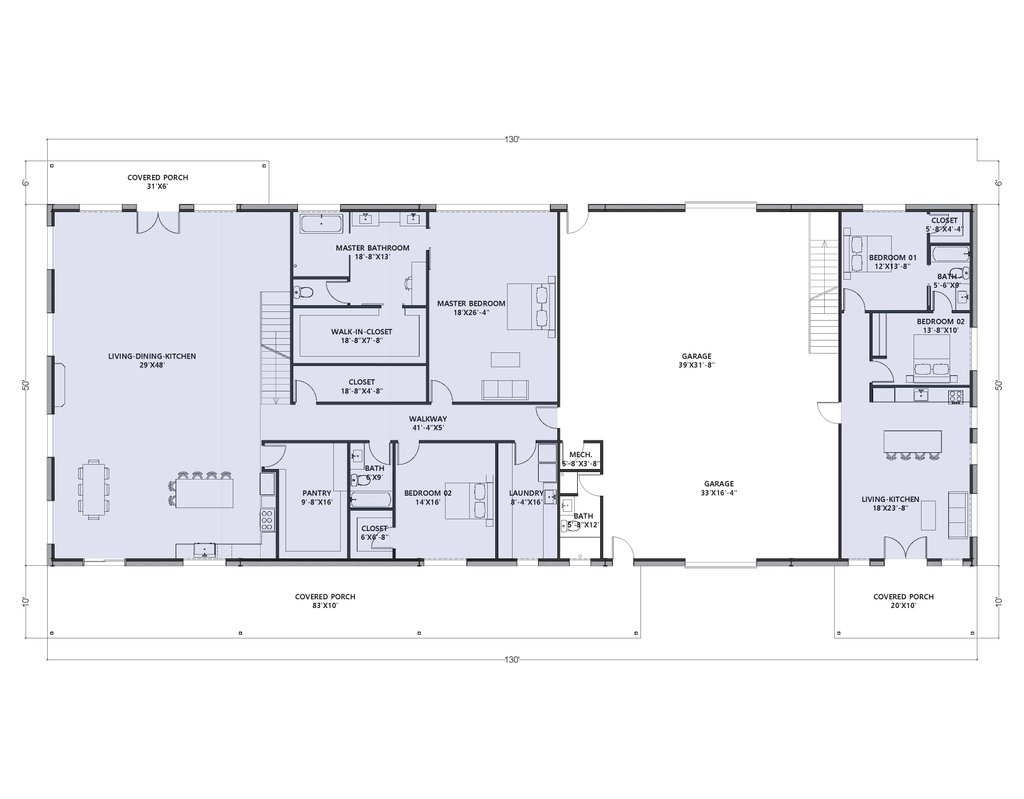

Floor Plan - Main Floor

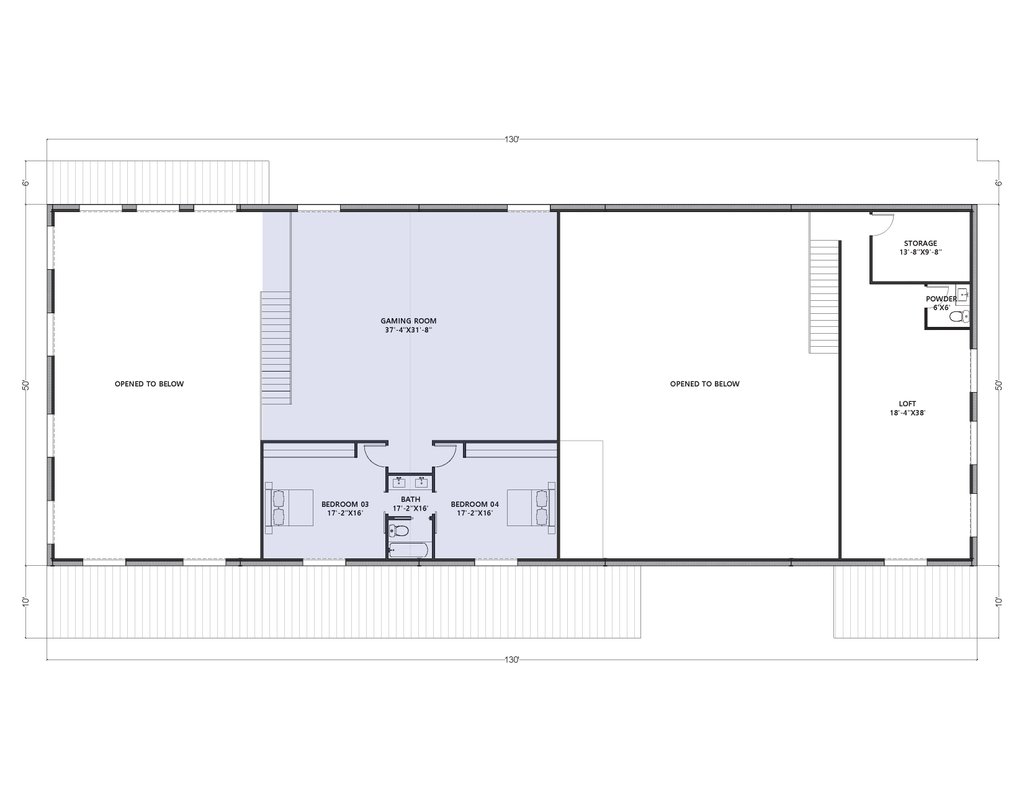

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 50'
Height : 32' 5"
Width : 130'
Area
Bonus : 1920 sq/ft
Garage : 1870 sq/ft
Main Floor : 3663 sq/ft
Porch : 1216 sq/ft
Upper Floor : 1975 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Eave height - 22' / peak height - 32'5"
Main Ceiling : 10'
Upper Ceiling Ft : 10'
Roof
Primary Pitch : 5:12
Roof Framing : Steel Rafters
Roof Type : PBR
Exterior Wall Framing
Exterior Wall Finish : PBR
Framing : Bolt-up steel + 2x4
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Unfinished Future Space
Workshop
Garage Features
Front Entry Garage
Oversized Garage
Rear Entry Garage
Entryway
Friend S Entry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Additional Half Bath
Jack & Jill Bath
Two Family Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-800-447-0027
Plan Set
PDF Master Set:
$2000.00
$2000.00
An unlocked, modifiable PDF file
5 Copy and PDF Set:
$2200.00
$2200.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$2800.00
$2800.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$3550.00
$3550.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$250.00
$250.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$350.00
$350.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Metal (PEMB):
$0.00
$0.00
Designed for use as a PEMB (Pre-Engineered Metal Building) using Z8 metal framing with insulated panels on the exterior and 2x4" studs for the interior.
Wood 2x4:
$325.00
$325.00
Wood 2x4 Exterior Walls
Wood 2x6:
$325.00
$325.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$245.00
$245.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$100.00
$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$750.00
$750.00
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$495.00
$495.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
