PLAN #928-64

Key Specs

3388
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Winner of multiple awards (including recognition at the 2010 American Residential Design Awards in the Published Designs category), this Visbeen Architects home boasts a timeless façade. Inspired by both the relaxed Shingle Style that swept the East Coast at the turn of the century and the all-American Four Square style found around the country, it features Old World architecture and modern conveniences as well as unparalleled craftsmanship and quality design. The curb appeal starts at the street, where a caramel-colored shingle and stone facade invite you inside from the European-style courtyard. Other highlights include irregularly shaped windows, a charming dovecote, cupola and a variety of welcoming window boxes on the street side. The rear includes two porches designed to take full advantage of views, a lower-level walk out and stone arches that lend an aura of both elegance and permanence. Step inside, and the interiors won’t disappoint. A spacious foyer with wood staircase leads into a large, open living room with natural stone fireplace, rustic beams and nearby walk-out deck. Also adjacent is a screened-in porch with access to both decks. The nearby kitchen includes a large multi-purpose island ideal for both entertaining and food preparation, as well as an informal dining area perfect for gathering both family and friends. Leaving the home’s family area, cross the foyer and enter your private retreat, a master bedroom suite with a large master bath as well as a private sitting room and sunroom. Who needs vacation when it’s such a pleasure staying home? The second floor features two cozy bedrooms, a bunk room with built-in sleeping areas and a convenient home office. In the lower level, a relaxed family room, billiards area, pub with wine cellar, and two additional bedrooms await.

Floor Plans

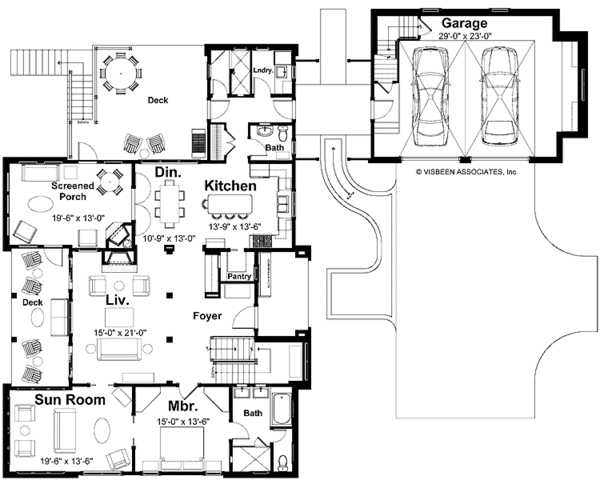

Floor Plan - Main Floor Plan

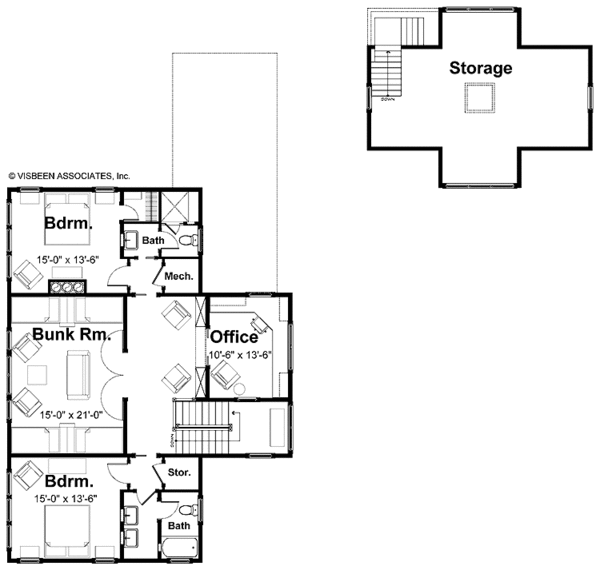

Floor Plan - Upper Floor Plan

Floor Plan - Other Floor Plan

Full Specs & Features

Dimension

Depth : 74'
Height : 33' 4"
Width : 92'

Area

Basement Unfinished: 1519 sq/ft
Bonus: 530 sq/ft
First Floor: 1992 sq/ft
Second Floor: 1396 sq/ft

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Shingle
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Open Floor Plan
Sunroom
Unfinished Future Space
Vaulted / Cathedral Ceilings
Wine Cellar

Outdoor Spaces

Balcony
Courtyard
Covered Rear Porch
Deck
Screened Porch

Rooms

Bedroom 2:

202 sq/ft width 15' x depth 13' 6"

Bedroom 3:

202 sq/ft width 15' x depth 13' 6"

Bedroom 4:

210 sq/ft width 15' 7" x depth 13' 6"

Bedroom 5:

121 sq/ft width 9' x depth 13' 6"

Billiards Room:

236 sq/ft width 17' 6" x depth 13' 6"

Dining Room:

139 sq/ft width 10' 9" x depth 13'

Entry:

width 11' 2" x depth 9'

Garage:

667 sq/ft width 29' x depth 23'

Kitchen:

185 sq/ft width 13' 9" x depth 13' 6"

Living Room:

315 sq/ft width 15' x depth 21'

Master Bedroom:

202 sq/ft width 15' x depth 13' 6"

Office:

141 sq/ft width 10' 6" x depth 13' 6"

Porch - Screened:

253 sq/ft width 19' 6" x depth 13'

Sun Room:

263 sq/ft width 19' 6" x depth 13' 6"

What's Included In This Plan Set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
