Call us at 1-800-447-0027

PLAN #17-3076

ON SALE!
Select Plan Set Options
What's included?
Additional Construction Sets
$36.00/each
Subtotal
NOW $990.00
You save $110.00
(10% savings)
Sale ends 4/27/18
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions? Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #17-3076

Key Specs


3976
sq ft

5
Beds

5.5
Baths

1
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

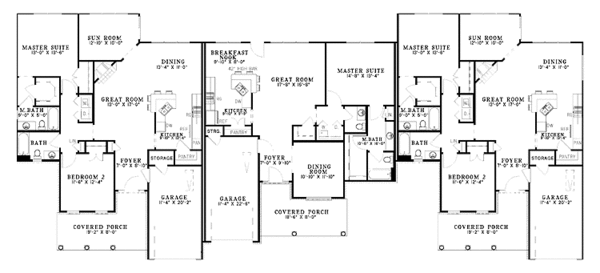

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #17-3076

Full Specs & Features


Dimension
Depth : 53' 10"
Height : 27'
Width : 123' 2"
Area
First Floor: 1398 sq/ft height 9'
First Floor: 1180 sq/ft
First Floor: 1398 sq/ft
Garage: 262 sq/ft
Garage: 280 sq/ft
Garage: 262 sq/ft
Porch: 185 sq/ft
Porch: 172 sq/ft
Porch: 185 sq/ft
Bedroom Features
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Covered Front Porch
Screened Porch Sunroom
Rooms

Bedroom 2:

141 sq/ft width 11' 6" x depth 12' 4"

Bedroom 2:

141 sq/ft width 11' 6" x depth 12' 4"

Breakfast Nook:

78 sq/ft width 9' 10" x depth 8'

Dining Room:

146 sq/ft width 13' 4" x depth 11'

Dining Room:

128 sq/ft width 10' 10" x depth 11' 10"

Dining Room:

146 sq/ft width 13' 4" x depth 11'

Foyer:

61 sq/ft width 7' x depth 8' 10"

Foyer:

68 sq/ft width 7' x depth 9' 10"

Foyer:

61 sq/ft width 7' x depth 8' 10"

Garage:

256 sq/ft width 11' 4" x depth 22' 8"

Garage:

256 sq/ft width 11' 4" x depth 22' 8"

Garage:

228 sq/ft width 11' 4" x depth 20' 2"

Great Room:

229 sq/ft width 13' x depth 17' 8"

Great Room:

276 sq/ft width 17' 8" x depth 15' 8"

Great Room:

221 sq/ft width 13' x depth 17'

Kitchen:

131 sq/ft width 9' 10" x depth 13' 4"

Kitchen:

81 sq/ft width 9' x depth 9'

Kitchen:

131 sq/ft width 9' 10" x depth 13' 4"

Master Bathroom:

45 sq/ft width 9' x depth 5'

Master Bathroom:

170 sq/ft width 10' 8" x depth 16'

Master Suite:

175 sq/ft width 13' x depth 13' 6"

Master Suite:

195 sq/ft width 14' 8" x depth 13' 4"

Master Suite:

175 sq/ft width 13' x depth 13' 6"

Porch - Front:

153 sq/ft width 19' 2" x depth 8'

Porch - Front:

148 sq/ft width 18' 6" x depth 8'

Porch - Front:

153 sq/ft width 19' 2" x depth 8'

Sun Room:

128 sq/ft width 12' 10" x depth 10'

Sun Room:

128 sq/ft width 12' 10" x depth 10'

What's Included In This Plan Set


  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.
Plan Set
5 Copy Set :
$990.00
5 printed plan sets mailed to you.
8 Copy Set :
$1080.00
8 printed plan sets mailed to you.
PDF Set :
$1665.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1665.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2560.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$810.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$225.00
Wood 2x6
Additional Options
Right-Reading Reverse :
135.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
36.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
17.10
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
90.00
Receive an overlay sheet with suggested placement of audio and video components.
Roof Framing Detail :
90.00
Get a detailed plan for your roof framing.
