PLAN #301-138

Key Specs


4114
sq ft

4
Beds

3.5
Baths

2
Floors

1
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Perfect for a narrow lot, this two-story home also offers plenty of windows to the rear to enjoy the view! The foyer is flanked by the master suite to the right and access to the garage and laundry to the left, with a staircase leading up to the second floor. Double doors are secreted under the staircase and lead to a spacious library. A dining room is next in line, defined by columns and across the hall from French doors to the outdoors. At the rear of the home, a spacious family room features a fireplace, built-in shelves and two sets of French doors.

Floor Plans

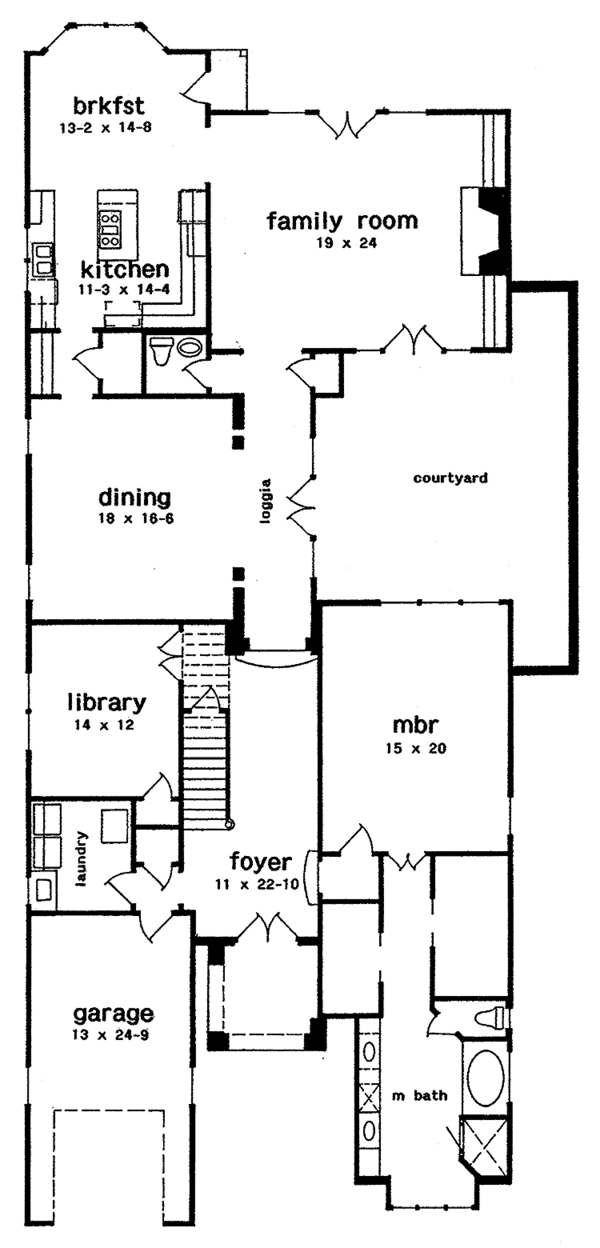

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

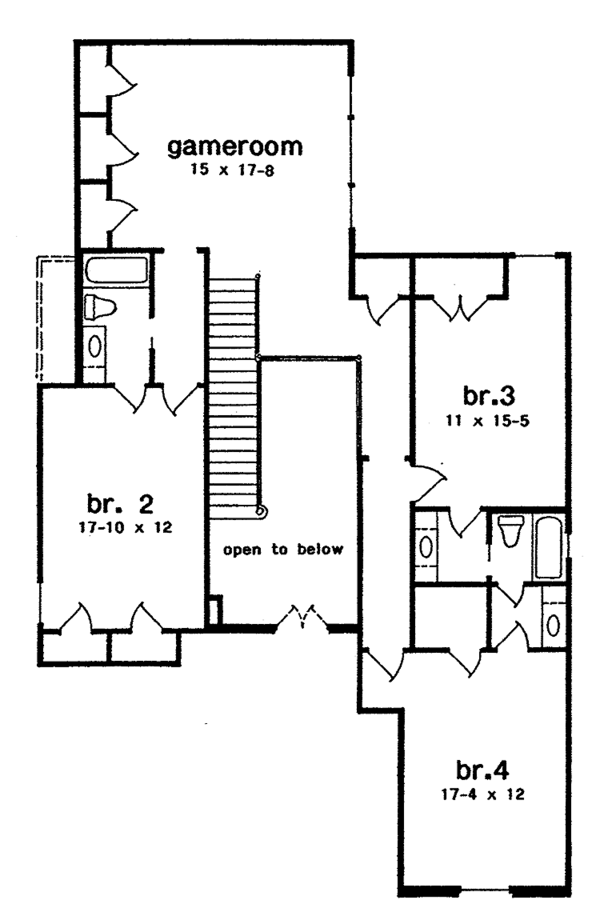

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 2672 sq/ft
Upper Floor : 1442 sq/ft
Bedroom Features Fireplace
Formal Dining Room
Additional Room Features Den Office Study Computer
Family Room Keeping Room

What's Included In This Plan Set


Andy McDonald

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1230.00
5 printed plan sets mailed to you.
8 Copy Set :
$1330.00
8 printed plan sets mailed to you.
Reproducible Set :
$1330.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$1030.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Additional Construction Sets :
66.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
