PLAN 17-2757
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Floor Plan - Other Floor

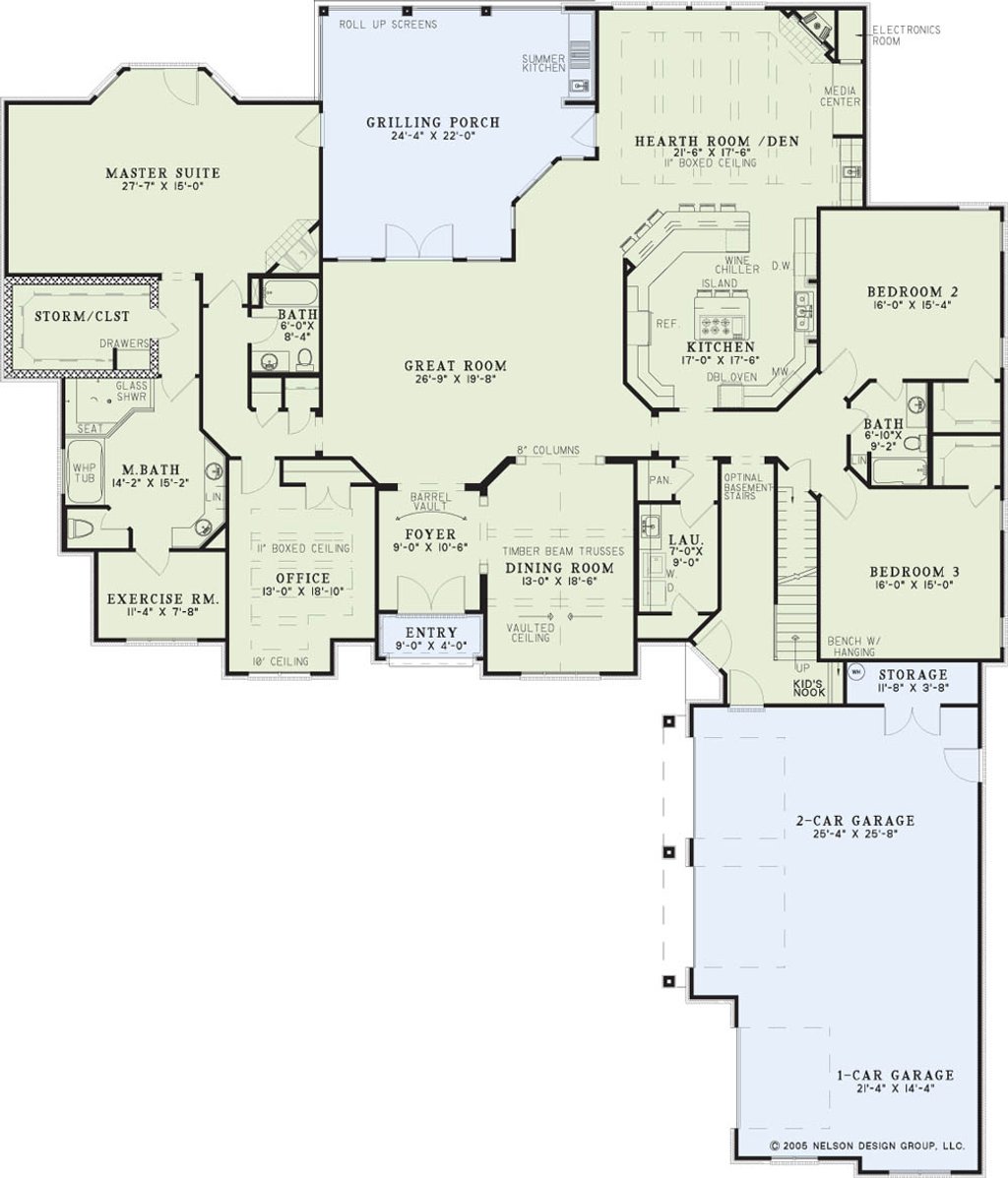

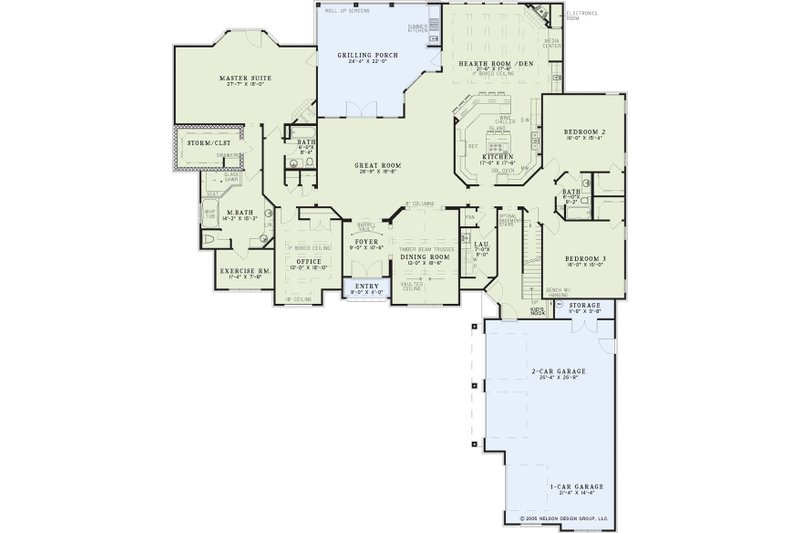

Floor Plan - Main Floor

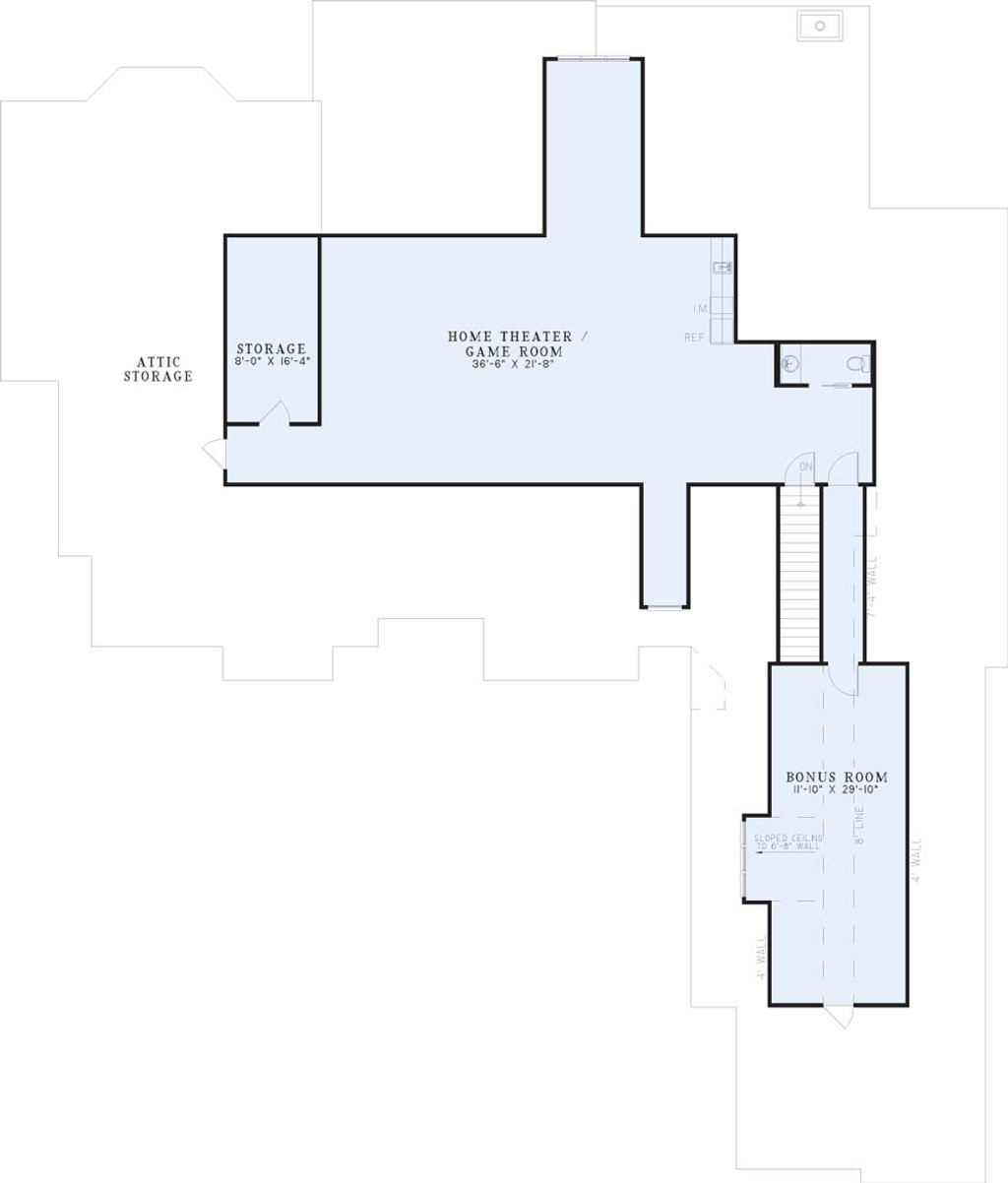

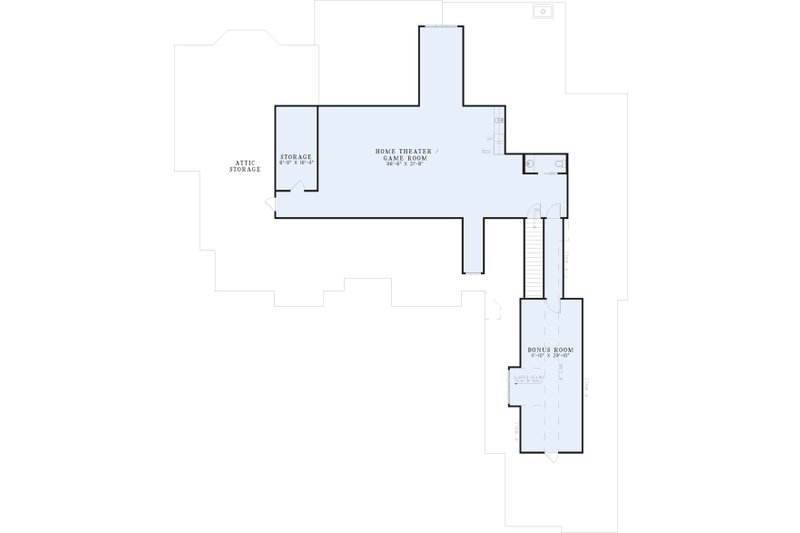

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 104'
Height : 31' 4"
Width : 89'
Area
Bonus: 1826 sq/ft
First Floor: 4121 sq/ft
Porch: 276 sq/ft
Storage: 1055 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Rear Porch
Grill Deck Sundeck
Rooms
Bedroom 2:
245 sq/ft width 16' x depth 15' 4"
Bedroom 3:
240 sq/ft width 16' x depth 15'
Dining Room:
240 sq/ft width 13' x depth 18' 6"
Entry:
36 sq/ft width 9' x depth 4'
Exercise Room:
86 sq/ft width 11' 4" x depth 7' 8"
Foyer:
94 sq/ft width 9' x depth 10' 6"
Garage:
650 sq/ft width 25' 4" x depth 25' 8"
Garage:
305 sq/ft width 21' 4" x depth 14' 4"
Great Room:
526 sq/ft width 26' 9" x depth 19' 8"
Grilling Porch:
535 sq/ft width 24' 4" x depth 22'
Hearth Room:
376 sq/ft width 21' 6" x depth 17' 6"
Home Office:
244 sq/ft width 13' x depth 18' 10"
Kitchen:
297 sq/ft width 17' x depth 17' 6"
Laundry Room:
63 sq/ft width 7' x depth 9'
Master Bathroom:
214 sq/ft width 14' 2" x depth 15' 2"
Master Bedroom:
413 sq/ft width 27' 7" x depth 15'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$2250.00
$2350.00
$2600.00
$2950.00
$4500.00
$4500.00
Foundation
$0.00
$0.00
$299.00
Framing
$0.00
$299.00
Additional Options
$299.00
$80.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
