PLAN #1021-2

Key Specs


5518
sq ft

4
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Take a vacation without ever leaving home with this exquisite European design. While the exterior is stunning, the interior is impressive from the first step. The large, circular foyer with winding staircase will welcome visitors to the grandeur of this home. The first floor master suite is a private retreat for the homeowner that offers a fireplace, sitting area, and spacious wardrobe. The open layout of the common areas encourages interaction--ideal for entertaining or a large family. The second floor boasts an exercise room, a gameroom, a large library with a fireplace, and a cardroom--all served by a swanky wet bar. Two additional bedrooms are housed on this level, separated by a Jack-and-Jill bath. A three-car garage with a carport completes this plan.

Floor Plans

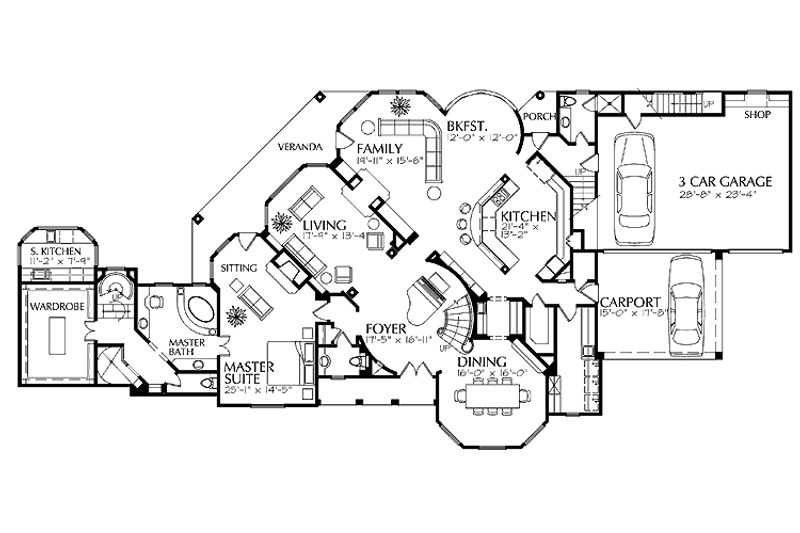

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1021-2

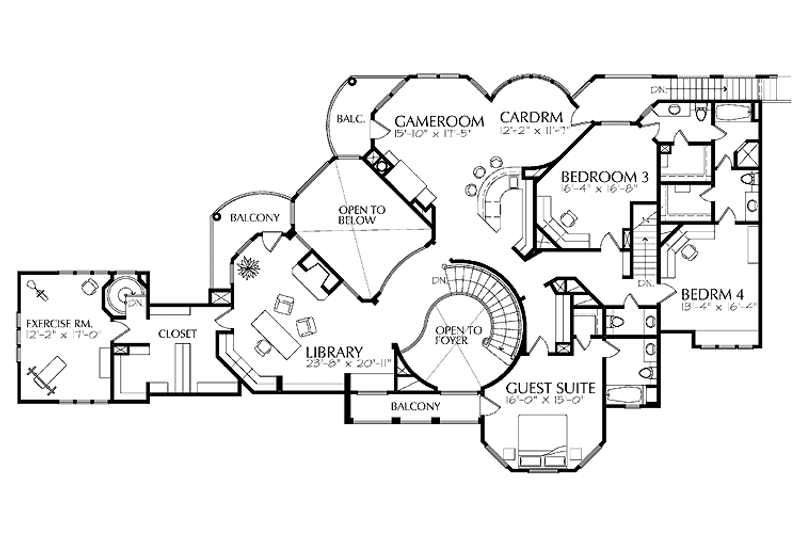

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #1021-2

Full Specs & Features


Dimension
Depth : 53' 4"
Height : 32'
Width : 115' 4"
Area
First Floor: 2856 sq/ft height 10'
Second Floor: 2662 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 7:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Loft
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Balcony
Outdoor Kitchen Grill
Rooms

Bedroom 2:

240 sq/ft width 16' x depth 15'

Bedroom 3:

272 sq/ft width 16' 4" x depth 16' 8"

Bedroom 4:

217 sq/ft width 13' 4" x depth 16' 4"

Breakfast Room:

204 sq/ft width 12' x depth 17'

Den/Office or Bedroom 1:

495 sq/ft width 23' 8" x depth 20' 11"

Dining Room:

256 sq/ft width 16' x depth 16'

Foyer:

294 sq/ft width 17' 5" x depth 16' 11"

Game Room:

275 sq/ft width 15' 10" x depth 17' 5"

Garage:

668 sq/ft width 28' 8" x depth 23' 4"

Gathering Room:

308 sq/ft width 19' 11" x depth 15' 6"

Kitchen:

280 sq/ft width 21' 4" x depth 13' 2"

Living Room:

236 sq/ft width 17' 9" x depth 13' 4"

Master Bedroom:

361 sq/ft width 25' 1" x depth 14' 5"

Utility Room:

132 sq/ft width 16' 6" x depth 8'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$2400.00
5 printed plan sets mailed to you.
PDF Set :
$2400.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
